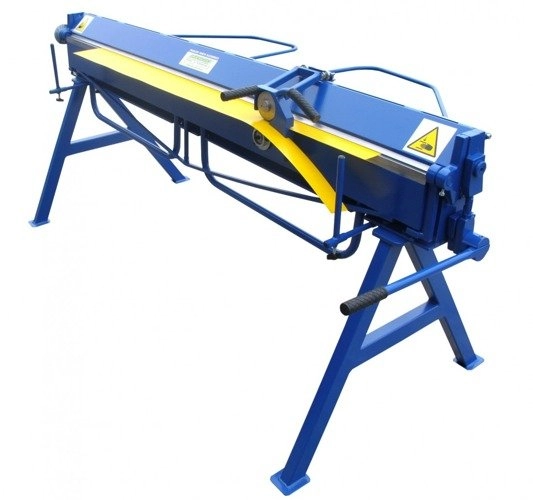

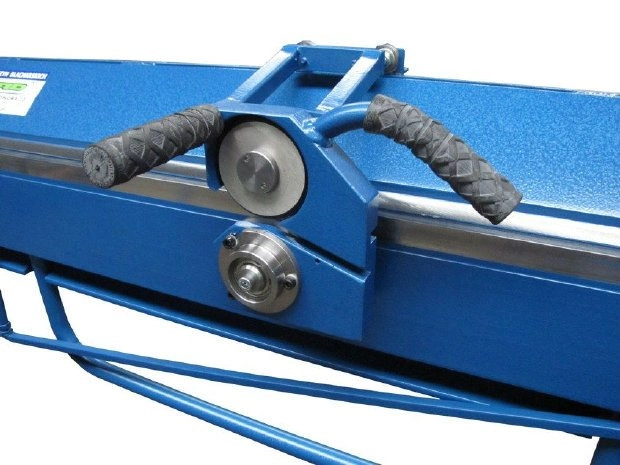

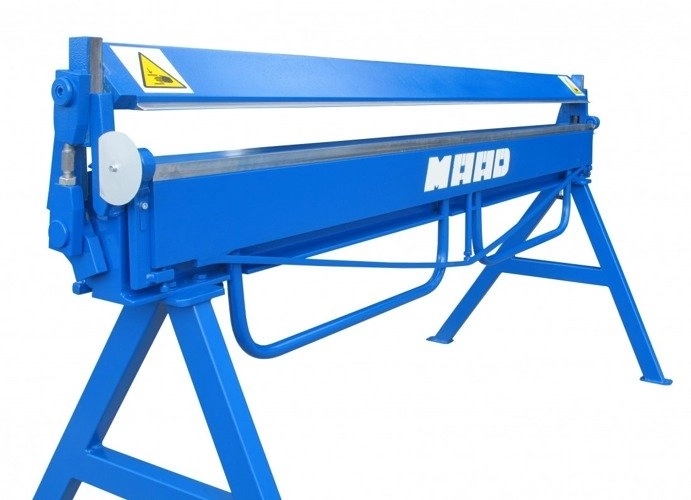

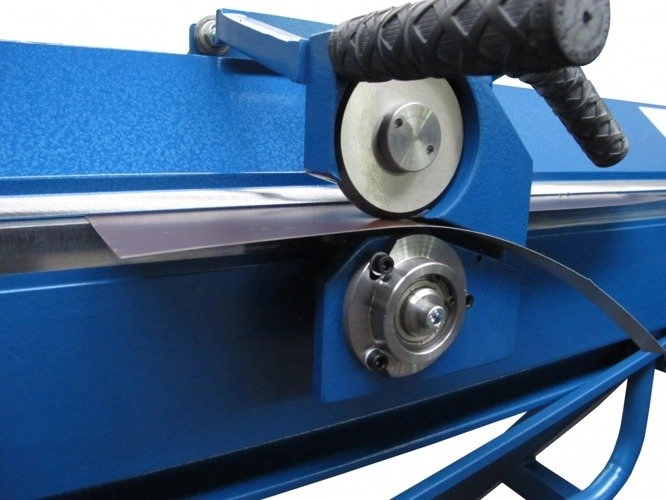

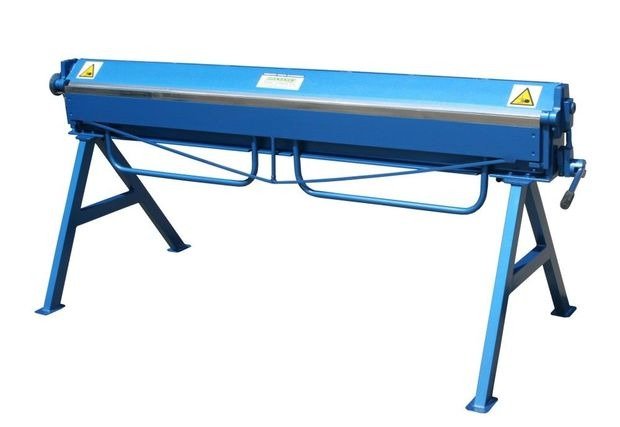

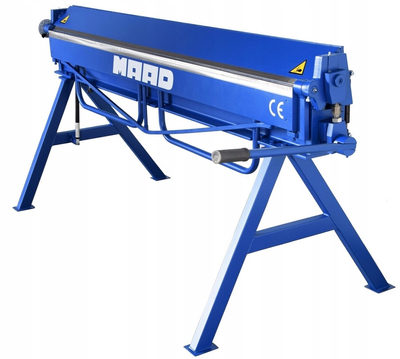

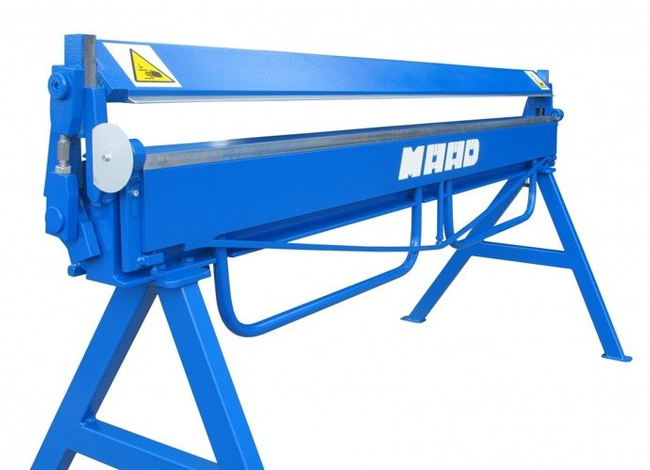

MAAD ZG-2000 /2mm sheet metal bending and cutting machine
- Bending machine with a working width of 2040 mm for steel sheets up to 2 mm thick.

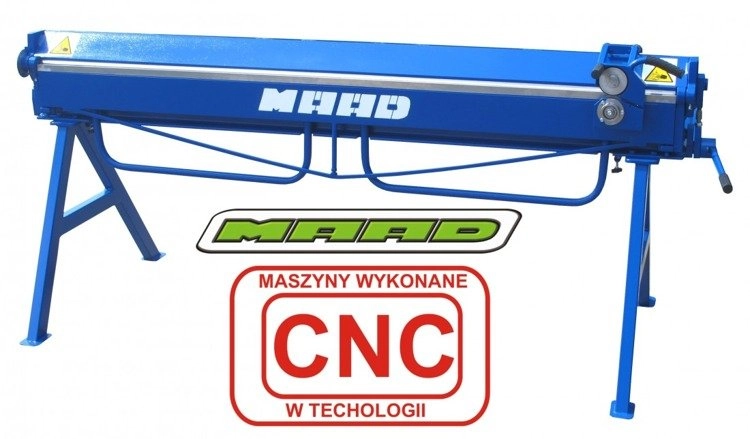

- Machine made with CNC technology

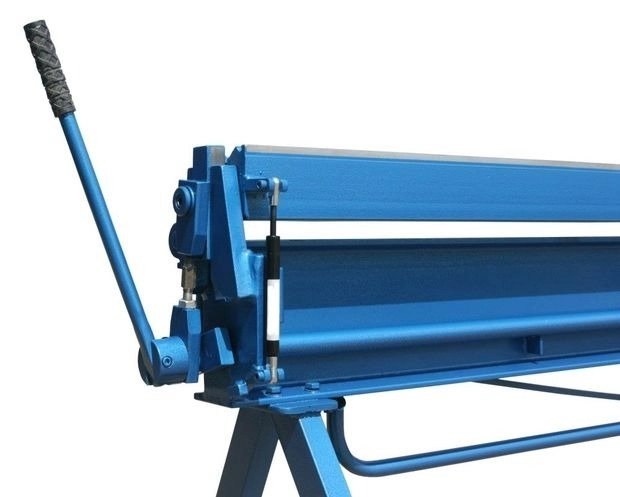

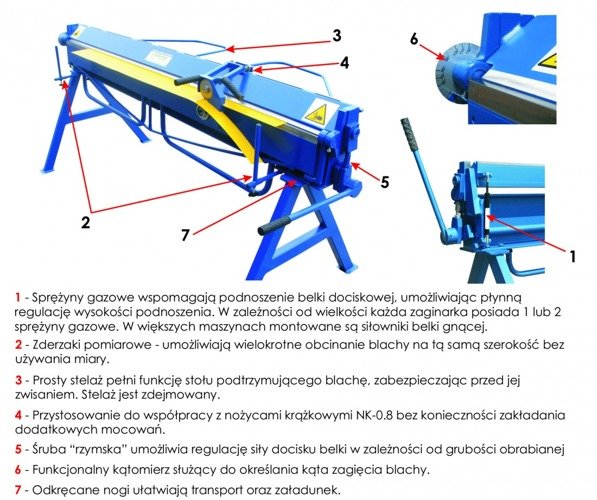

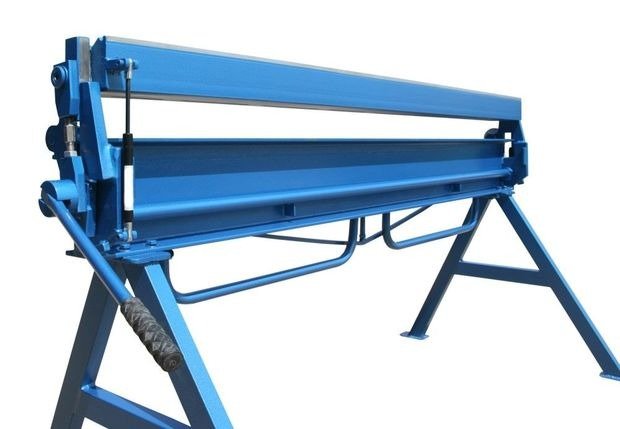

The largest and most powerful model of the bending machine from the ZG-2000 type, that is, a machine with the ability to bend sheet metal up to 2 mm thick with parameters Rm < 400 MPa (yield strength). The ZG-2000/2.0 bending machine is equipped with a total of 4 gas cylinders with a total force of 2820 N, which translates into the ability to raise approximately 285 kg!

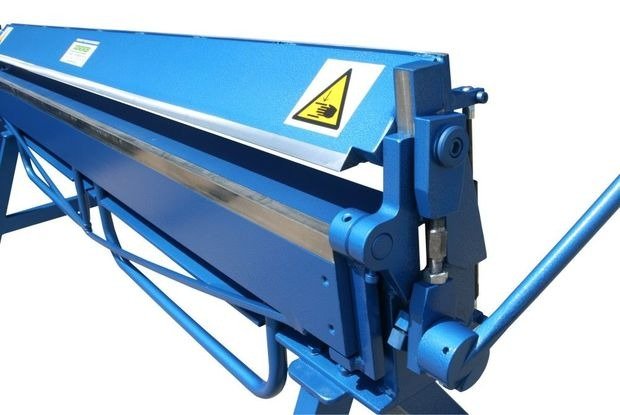

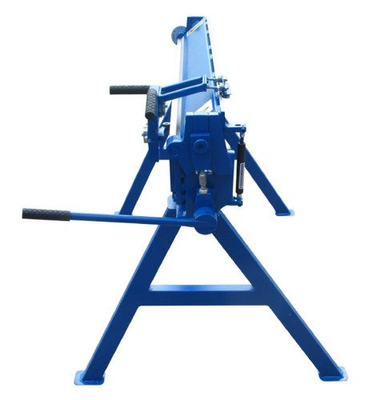

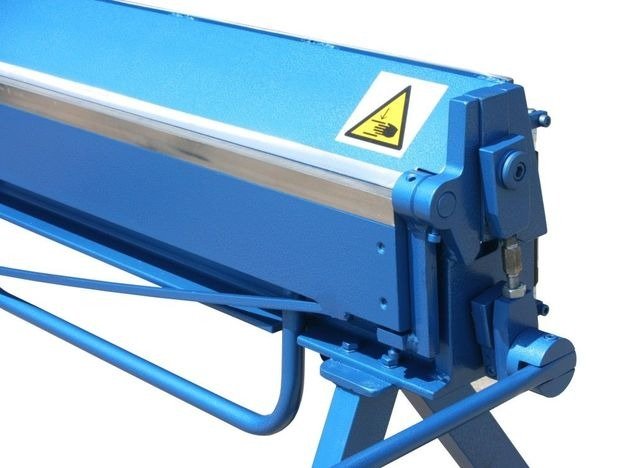

The side mechanisms of the bending machine were burned and milled from 35-mm-thick sheet metal, which increased the strength of the machine compared to the ZG-2000/1.5 model. The entire elements of the mechanisms or working beams were made on the milling centers and CNC lathes.
Working width: 2050 mm
Max. sheet thickness: 2.0 mm for Rm < 400 MPa

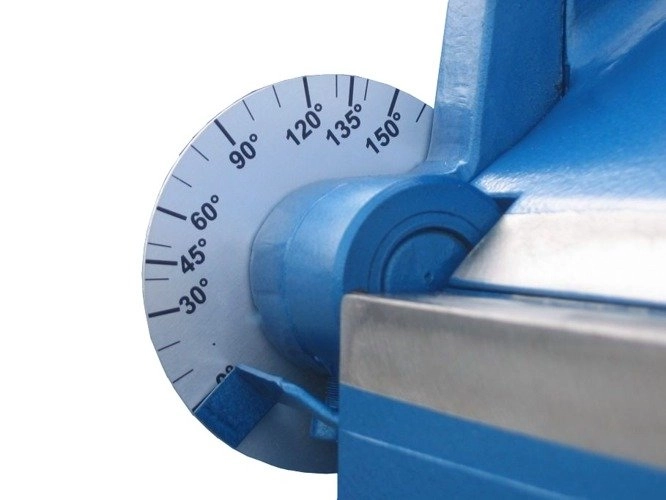

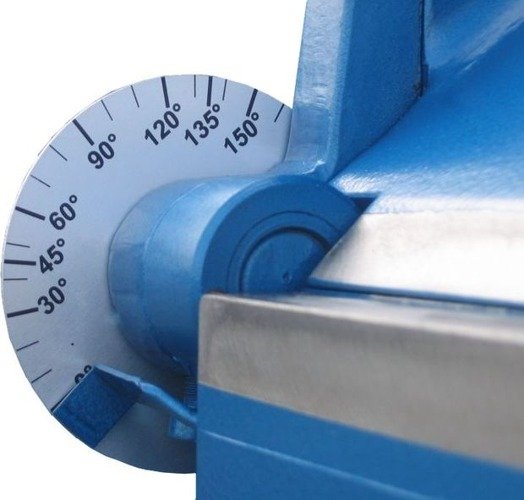

Max. bend angle: 130°
Width of the bending beam: 30 mm
Weight: 500 kg
