  • MAAD ZG-1400 /0.8 bending machine with a working width of 1450 mm for steel sheets up to 0.8 mm thick.
  • Machine made with CNC technology.Bending machine designed to bend mainly roofing flashings with a width of up to 1400 mm .
List price925,99 €
856,08 €
incl. VAT / pcs.
Lowest price in 30 days before discount:
Express checkout 1-Click(without registration)
Product Available
Product Available
14 days to return
Find out in which store you can check the product and buy it right away
MAAD ZG-1400 /0.8 mm BENDING DEPTH CRAFTING BENDER for sheet metal with cutting MAAD ZG-1400 /0.8 mm
MAAD ZG-1400 /0.8 mm BENDING DEPTH CRAFTING BENDER for sheet metal with cutting MAAD ZG-1400 /0.8 mm
Safe shopping
Average 4.7 on Opineo see
Free returns
Authorized distributor internet, see
Guarantee of reliability and timeliness
ROOFING SHEET METAL BENDING MACHINE
MAAD ZG-1400/0.8

Bending machine MAAD ZG-1400/0.8 designed to bend mainly roofing flashings with a width of up to 1400 mm . Compact and robust design (130 kg) guarantees trouble-free operation without deformation of bending elements for many years. A specially milled dripline allows the sheet to be bent all the way to the end of the 155. Narrow bending bar with a width of 15 mm and the absence of tensioners on the clamping bar guarantee the execution of a large number of complex machining operations.The ZG-1400/0.8 bending machine is a machine with a compact design, simple in operation, created mainly for roofers. Functional and reliable in use, guarantees trouble-free operation without deformation of bending elements. Narrow bending beam makes it possible to perform complex flashings.

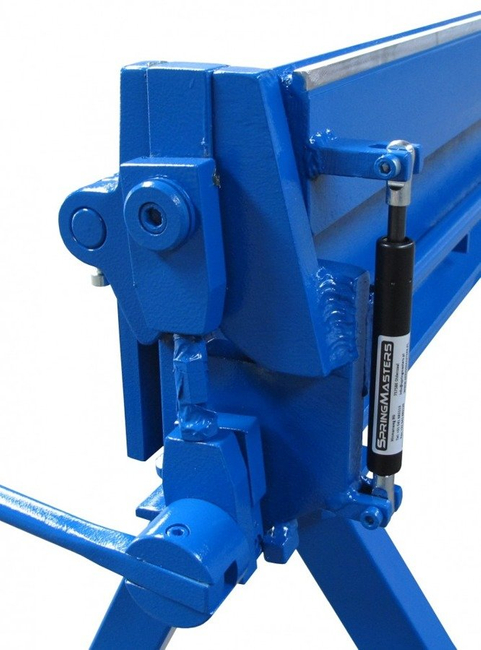

Machine equipped with one gas cylinder that raises the pressure bar in the desired position.

  • Working width: 1450 mm
  • Max. sheet thickness: 0.8 mm for Rm < 400 MPa
  • Max. bend angle: 155°
  • Bending bar width: 15 mm
  • Roller shears NK-0.8 (Option)
  • width of the bending beam - 15 mm
  • maximum bending angle - 155 degrees
  • weight of the machine - 130 kg
  • detachable legs - makes transportation and loading much easier
  • rack worn on the back of the machine to support the sheet metal
  • gauges for cutting sheet metal
  • protractor as standard equipment
  • Shears of Circular (optional)
  • pressure beam gas cylinder
  • detachable legs
  • rack worn on the back to hold sheet metal
  • gauges for cutting sheet metal

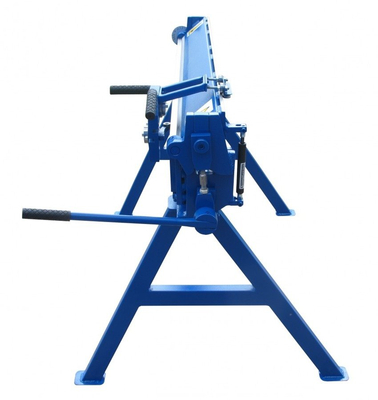

Machine dimensions:

  • height - 980 mm
  • width - 1,610 mm
  • depth - 990 mm

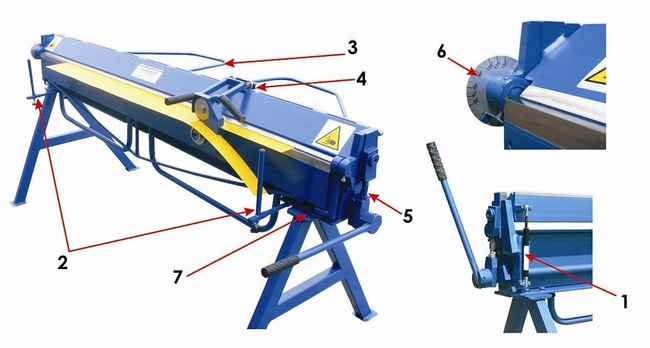

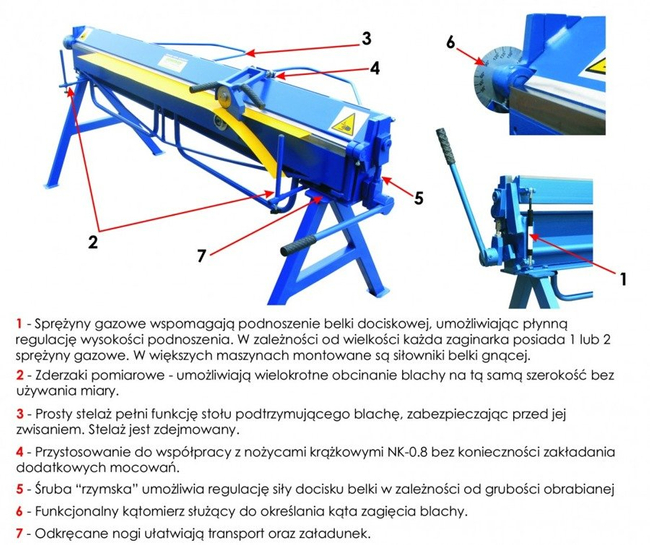

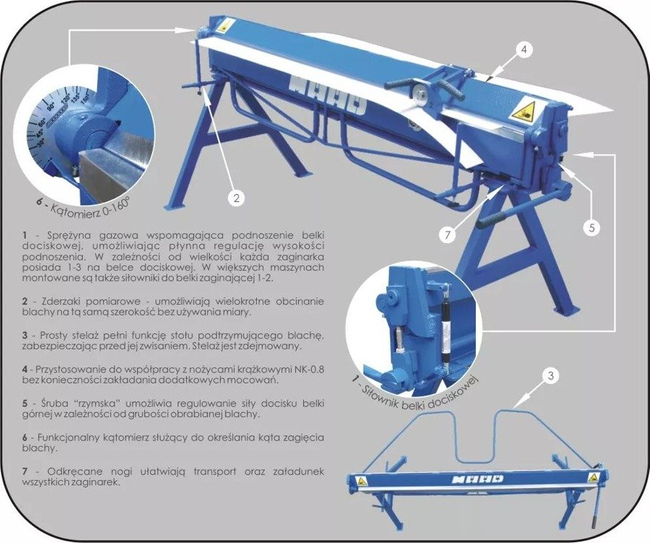

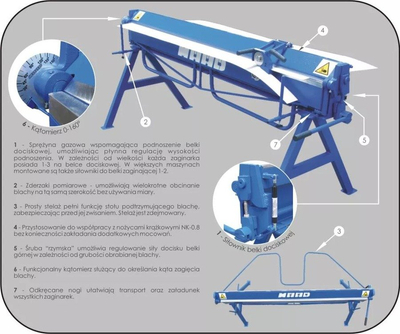

The main working elements of the bending machine are the beams: fixed, pressure and bending beams.

The pressure beam is a movable beam used to fix the sheet in the desired position. It is raised and lowered by a lever. Gas cylinder assists in raising the pressure beam. The pressure beam is designed so that its upper part is a guide for the roller shears.

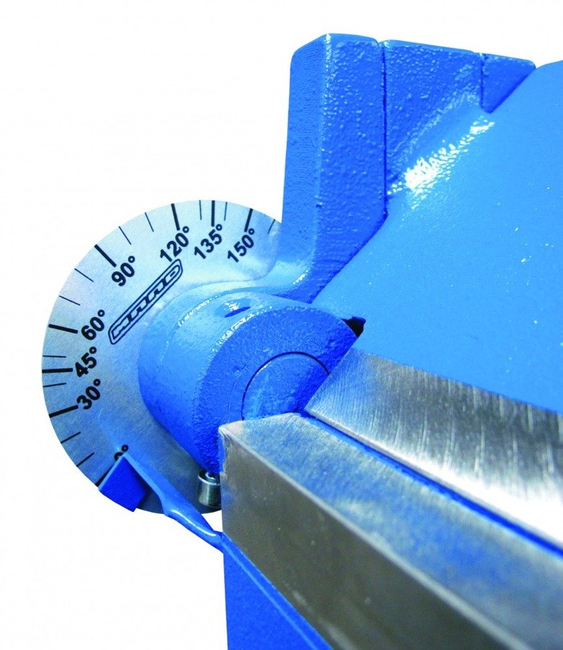

The bending operation is carried out by rotating the bending beam by a certain angular value using a handle. Angle gauge mounted on the left side of the bending machine when viewed from the front indicates the current angle of the sheet metal bend.

The bending beam is height adjustable relative to the fixed beam. This parameter affects the bending radius of the sheet and its size also depends on the thickness of the sheet to be bent.

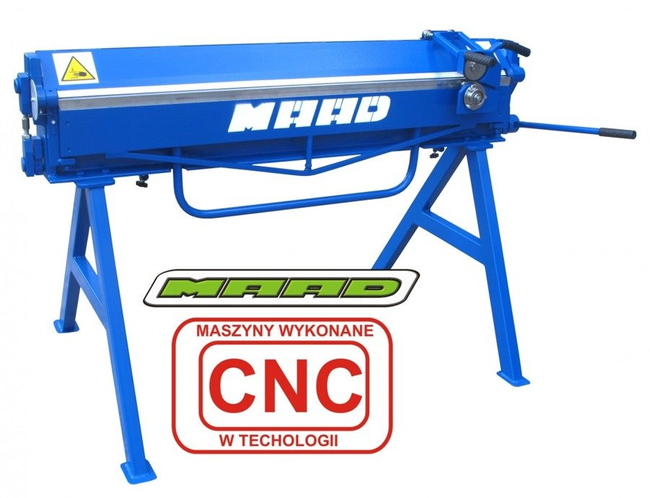

Bending machine components are made on precision CNC machine tools.

The bending machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.

Brand:
Symbol:
MAAD ZG-1400/0.8 ZAGINARKA GIĘTARKA KRAWĘDZIA
Producer code:
MAAD ZG-1400/0.8
WARRANTY 12/24 Months
