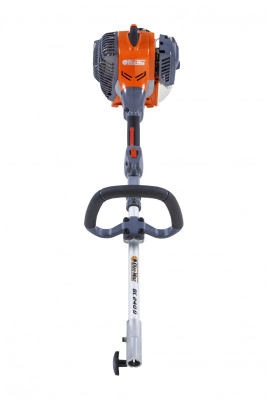

BC 241 D DRIVE UNIT 61378050E2
- BC 241 D DRIVE UNIT 61378050E2 - a lightweight, professional base for a multifunctional garden system. Powerful 21.7 cm³ 2-stroke engine, EasyOn quick start, "no tools" system for scythe, shear, blower and trimming machine. Ideal for garden and service co
BC 241 D DRIVE UNIT 61378050E2 - professional multifunctional drive unit for garden care
BC 241 D DRIVE UNIT 61378050E2 is a compact, lightweight and extremely powerful drive unit that changes the way you work in the garden and around the house. It combines a powerful 2-stroke engine with advanced design features to create a base for a wide range of tools and attachments - from grass cutting and hedge trimming to leaf blowing and branch trimming. Thanks to its "no tools" quick-connect system, it becomes a versatile green space care center for both private users and professionals.
What is BC 241 D DRIVE UNIT 61378050E2?
It is a self-contained drive unit with an internal combustion engine, which is the heart of the entire system of garden tools. To this drive you connect the attachments of your choice (scythe, hedge trimmer, blower, trimming machine, shaft extension), creating a multi-functional device to suit your current needs.
Where BC 241 D DRIVE UNIT 61378050E2 is assembled?
The drive unit is mounted at the beginning of the working shaft, forming the "engine" part of the garden tool. Thanks to the "no tools" system, the attachments are mounted without tools - just slide them in, lock them and you're ready to work. This solution is ideal for those who want to replace several separate machines with a single, modular system.
Application BC 241 D DRIVE UNIT 61378050E2
With the right attachments, this drive allows:
- mowing grass and weeds (scythe attachment),
- trimming of hedges and shrubs (hedge trimmers),
- cleaning driveways and alleys from leaves and light debris (blower),
- pruning and limbing of branches at height (limbing machine),
- increased working range thanks to the shaft extension.
BC 241 D drive unit - compact power for demanding applications
BC 241 D drive unit was developed and designed for both the most demanding private users and professional users with numerous and varied needs, including those involved in the care of demanding green areas. It is ideal for mowing the lawn, trimming hedges, cutting shrub branches, and blowing away leaves or debris. It is the most compact and lightweight machine in its category, at the same time characterized by high power, reliability and practicality thanks to the "no tool" quick-attach system, allowing the use of multiple tools.
- 2-stroke engine with a displacement of 21.7 cc and an output of 1.2 hp (0.9 kW), characterized by high and linear torque even at low speeds.
- Piston with 2 piston rings, with nickel-plated cast cylinder, forged connecting rod and crankshaft: guarantee of strength and durability.
- Electronically regulated digital coil with speed limiter: facilitates starting and improves performance, ensuring uniform combustion and reduced fuel consumption.
- Innovative Load&Go 110 mm diameter head with 2.4 mm diameter line: provides exceptionally easy and fast refilling of the line - it takes only 20 seconds to wind it up, after which you can resume work (applies to the scythe attachment for BC241D/BC300D).
- Machine equipped with "no tools" quick-connect system: this is a mechanism designed to connect 4 different attachments without the need for tools.
- 26mm diameter aluminum shaft guard with anti-vibration, self-lubricating bushings to ensure smooth movement of the drive shaft for greater operator comfort. Aluminum contour gear with M10 threaded shank, designed for optimum power transfer to the cutting device
- Switch on./ off.: automatically returns to the ignition position every time it is turned off (always on).
- Filter holder with anti-jet diode in the carburetor (Emak patent), prevents the filter from being saturated with the mixture and ensures longer autonomy of operation between maintenance intervals.
- "EasyOn" mechanism: consisting of a double spring in the starter housing, combined with a mechanism equipped with two ratchets, ensures less effort with each jerk and fast ignition requiring only a few strokes.
Technical specifications:
| The useful power of the device | 1.2 hp - 0.9 kW |
| Engine capacity | 21.7 cm³ |
| Engine power | 1.4 hp - 1.1 kW |
| Weight | 4.0 kg |
| Shaft cover diameter | 26 mm |
| Equipment | optional: scythe, hedge trimmer, blower, shaft extension; limbing machine |
| Fuel tank capacity | 0,4 l |
| Steering wheel | handle |
Drive unit BC 241 D - 21.7 cm³ 2-stroke engine that provides power and economy
Heart BC 241 D DRIVE UNIT 61378050E2 constitutes a modern 2-stroke engine with a capacity of 21.7 cm³. It provides usable power of 1.2 hp (0.9 kW), which, combined with the low weight of the device (only 4.0 kg), translates into an excellent power-to-weight ratio. For the user, this means easy maneuvering of the tool, fast working speed and less fatigue during longer sessions.
Engine features high and linear torque even at low speeds. This prevents the tool from "choking" in tougher grass or when cutting dense shrubs. The operation is smooth, predictable and comfortable - both for the amateur and the gardener handling multiple properties in a day.
Piston with 2 piston rings, nickel-plated cast cylinder, forged connecting rod and crankshaft create a durable, long-lasting drivetrain. These are solutions used in equipment for professionals, transferred to multifunction machines. With proper operation and regular servicing, the unit provides long, trouble-free operation even with heavy use season after season.
Daily applications include m.in.:
- regular mowing of the home lawn of several hundred square meters,
- keeping wild vegetation in check on a recreational plot,
- cleaning work around outbuildings and businesses,
- care of greenery in green area maintenance service companies.
BC 241 D's "no tools" system - one drive, multiple tools and instant change of attachments
The biggest advantage BC 241 D DRIVE UNIT 61378050E2 is an extensive quick-connect system "no tools". It's a mechanism that allows you to connect up to four different attachments without additional tools. In practice, this means that one drive unit can perform the function:
- scythe - For effective mowing of grass and weeds, including around fences, walls and trees,
- hedge trimmers - For precise shaping of hedges and ornamental shrubs,
- blowers - For quick removal of leaves, grass clippings and light debris from driveways, patios or sidewalks,
- trimmers (with the possibility of installing a shaft extension) - for safe pruning of higher branches without the need for a ladder.
Changing the attachment literally takes a moment - a huge time and space saver compared to buying several separate machines. Instead of keeping a separate cutter, shear and blower, all you need is one drive unit and a set of dedicated bits.
A sample scenario from one day's work:
- in the morning, you connect the scythe attachment and quickly trim the overgrown edges of the plot,
- then you change the tip to a hedge trimmer, forming a hedge along the fence,
- in the afternoon, after collecting the larger waste, you put on the blower and clean the paving stones and sidewalk,
- at the end of the day, with a shaft extension and a pruning machine, you trim some branches hanging too low over the driveway.
Comfort and ergonomics with the BC 241 D drive unit - lightweight, anti-vibration, easy starting
When designing BC 241 D special attention has been paid to user convenience. The unit weighs only 4.0 kg, which, combined with the ergonomic handle and well-balanced center of gravity significantly reduces arm and back fatigue. This is especially important for longer jobs, such as mowing large areas or trimming long hedges.
Aluminum shaft guard with a diameter of 26 mm is equipped with anti-vibration, self-lubricating bushings. They reduce the transmission of vibrations to the operator's hands and arms, while ensuring smooth movement of the drive shaft. This makes work more comfortable and safer - less strain on joints and muscles.
Another convenience is the mechanism "EasyOn", which consists of a double spring in the starter housing and a mechanism with two ratchets. This solution significantly reduces the effort with each pull of the cable and makes the start-up fast, usually after a few calm jerks. No need to use excessive force or worry about difficult firing after a long pause.
Convenience of operation is also enhanced by on/off switch./ off. of the "always on" type, which automatically returns to the ignition position after each shutdown. This minimizes the risk of confusion and speeds up restarts - you simply turn on the suction, pull the cable and get back to work.
Examples of everyday situations in which you will appreciate the ergonomics of the BC 241 D:
- mowing near curbs and fences without putting undue strain on your wrists,
- long-lasting cutting of the hedge without feeling "cut off" hands from the vibration,
- quick restart of the machine after a short break to empty the basket or change the attachment.
Durability and low operating costs - advanced design of BC 241 D to work season after season
Drive unit BC 241 D has been designed to reduce the need for frequent maintenance and repairs. The key role here is played by electronically controlled digital coil with speed limiter. It facilitates starting, stabilizes engine operation, ensures uniform mixture combustion and reduces fuel consumption. The result is lower operating costs and cleaner operation.
Filter holder with diode to prevent recoil in the carburetor (Emak's patented solution) prevents excessive saturation of the filter with the fuel mixture. As a result, the filter lasts longer and inspection and cleaning can be done less often. This is important both for private users who just want to "refuel and work" and professionals for whom machine downtime is a real cost.
Robust aluminum bevel gear with M10 threaded pin ensures optimum power transfer to the cutting device. This means less energy loss, better cutting and longer life for the entire drive system. The combination of high-quality materials and precision workmanship makes the BC 241 D an investment for years to come.
Examples of the practical benefits of sustainable design:
- less frequent air filter changes and less sensitivity to minor errors in fuel mixture preparation,
- stable operation even under prolonged, continuous load in hot weather,
- low failure rate with regular garden maintenance for many seasons.
Functional specifications of BC 241 D - technical parameters in the service of user convenience
Technical specifications BC 241 D DRIVE UNIT 61378050E2 have been selected to provide maximum functionality while maintaining ease of use:
- The useful power of the device: 1.2 hp (0.9 kW) - enough to tackle dense grass, weeds or thicker branches with the right attachments.
- Engine Capacity: 21.7 cm³ - a compromise between power, weight and fuel consumption.
- Engine power: 1.4 hp (1.1 kW) - high power reserve for stable operation under load.
- Weight: 4.0 kg - low weight makes it easy to transport, maneuver and work overhead (e.g. with a limbing machine).
- Shaft cover diameter: 26 mm - solid construction and good rigidity with comfortable use.
- Fuel tank capacity: 0.4 l - optimal for typical garden work, allows convenient control of fuel level.
- Steering wheel: handle - secure grip and precise guidance of the tool in different positions.
- Optional equipment: scythe, hedge trimmer, blower, shaft extension, trimming machine - a complete system of gardening tools based on one engine.
In practice, this means that the BC 241 D can serve as the main tool for caring for the surroundings of a home, business or public facility. Thanks to its modular design, it can be easily adapted to a variety of tasks - from delicate shaping of decorative plants to intensive cleanup work after a gale.
Frequently Asked Questions (FAQ) - BC 241 D DRIVE UNIT 61378050E2
1. Are there working attachments included with the BC 241 D?
No, the offer is only for the drive unit. Attachments such as a scythe, hedge trimmer, blower, shaft extension, or trimming machine are available separately. This allows you to choose exactly the accessories you need.
2. For what type of work is the BC 241 D best suited??
The BC 241 D will prove useful for both standard backyard garden maintenance (grass cutting, hedge shaping) and more demanding tasks, such as cleaning up after high winds, removing leaves from large areas or limbing trees.
3. Is the BC 241 D unit suitable for novice users?
Yes. "EasyOn" mechanism, "always on" switch and "no tools" quick-change attachment system make operation intuitive. With basic safety precautions, the BC 241 D will also be a convenient tool for people who are new to working with combustion equipment.
4. What fuel should be used to power the BC 241 D?
It is a 2-stroke engine, which requires the supply of a a mixture of gasoline and oil designed for 2-stroke engines. Detailed proportions of the mixture are given in the instruction manual of the device. Using the right fuel has a key impact on the life of the drive unit.
5. How often should inspections and maintenance be performed?
Inspection frequency depends on the intensity of use. By using a filter holder with an anti-rejection diode in the carburetor, maintenance intervals can be longer. However, it is recommended to regularly check the air filter, spark plug, condition of the bevel gear and use fresh fuel mixture.
6. Is the BC 241 D suitable for gardening service companies?
Yes, the design of the motor, the high quality of the materials used and the ability to quickly change attachments also make the BC 241 D unit suitable for intensive professional use. It is a practical choice for companies that want to reduce the amount of equipment while maintaining high productivity.
7. How to store a power unit in the off-season?
At the end of the season, it is recommended to empty the fuel tank, burn off any residual mixture in the carburetor, clean the external surfaces of dirt and store the BC 241 D in a dry, ventilated place. This will ensure that the unit will be ready to go as soon as the next start-up at the beginning of the season.
WARRANTY TERMS AND CONDITIONS
For warranty terms and conditions, please refer to the instruction manual included in the device packaging. Devices covered by the extended warranty (3 and 5 years) require the execution of the mandatory warranty inspections (payable) at the times specified in the warranty terms and conditions.
The obligations of the guarantor under the guarantee are to repair the defective goods, the advertised device is not subject to replacement or cash back.
1. The manufacturer guarantees its products for a period of time:
- Oleo-Mac internal combustion mowers 60 months for consumer use and 12 months otherwise
- Oleo-Mac chainsaws, Oleo-Mac scythes, Oleo-Mac electric mowers, Oleo-Mac trimmers
TR 61 E and TR 91 E, garden tractors. EMAK K-series internal combustion engines powering mowers and
tractors 36 months for consumer use and in other cases 12 months
- Other devices for consumer use 24 months and in other cases 12 months
Additional consumer warranty on Briggs&Stratton engines after the expiration of the manufacturer's warranty period of 12 months -
The condition for maintaining the 36-month warranty period is to perform two paid inspections of the device at an authorized service center - in 12 and 24 month from the date of purchase no later than 7 days after the specified date.
As a condition for maintaining the 60-month warranty period, four paid inspections of the device must be performed at an authorized service center - at 12, 24,36 and 48 months from the date of purchase no later than 7 days after the appointed date. All inspections performed by the dealer must be recorded in the electronic
b2B guarantee settlement system. Internal combustion engines of other brands (Briggs & Stratton, HONDA, KAWASAKI, SUBARU, etc.).) and hydrostatic transmissions are covered by a separate warranty manufacturer. Details of the warranty terms and conditions are contained in separate manuals for the listed components.
2. The warranty covers all damages occurring during the warranty period resulting from the discovery of latent material defects during this period, assembly or technological.
3. The technical staff will proceed with the repair in the time allowed by organizational requirements, always as soon as possible.
4. The choice of how to remove the damage is up to the guarantor, who can remove the defect by repairing the device or replacing the damaged part. Regardless
way of removing the damage, the warranty continues, extended by the time of removal of the damage by the guarantor.
5. Warranty repair can only be carried out on the basis of the device registration in the B2B system or a valid warranty card with proof of purchase.
Failure to register the device, the warranty card or its cancellation will exclude the guarantor's liability under the warranty provided.
6. The user has the right to appeal against the decision of the service point regarding the qualification of the reported failure. The appeal must be submitted only in the form of in writing with a set of documents stating the course of repairs made and a description of the technical condition of the equipment at the time of the original inspection made by the service point.
7. The warranty period is extended by the time necessary for warranty repair. The dates posted on the claim in the b2B electronic guarantee settlement system.
8. The repair shop is required to make entries regarding the scope of warranty repairs in the B2B electronic warranty billing system.
9. For paid repairs performed, the guarantor provides a 3-month warranty on the condition that the repair is carried out in the guarantor's workshop and that the repair is used for the repair original spare parts. The basis for the claim is the proof of purchase of parts and the service performed.
10. Warranty repair is not subject to: damage caused by improper operation, damage caused by using the device for purposes for which it is not intended, damage caused by the use of improper consumables, mechanical damage, and
caused by improper transportation or storage, damage caused by lack of maintenance, components that have suffered wear and tear in service during proper operation.
11. The warranty is voided as a result of structural changes or modifications made by the user, as a result of interference found by the service point
inside the device by unauthorized persons, as a result of breaking or dismantling the carburetor adjustment locks, in the event that entries are found to have been made in the warranty card by unauthorized persons.
12. The warranty does not cover consumable items and items that wear out during the warranty period, such as:
- Consumable components, e.g.: cutting blades, discs, cutting bars, vee heads, filters, starter cables, spark plugs, bulbs, wheels, drums and clutch jaws,
clutches and friction discs, drive belts, safety bolts, cutting chains and guides, high-pressure washer lances.
- Engine components: cylinders, pistons, rings, crankshaft, bearings, pan, carburetor diaphragms.
- Other consumable parts: knife hubs, safety keyways, shock absorbers, bearings, pan, gears, overload fuses, carbon brushes, control ties and cables
- Starting batteries used in machines with an electric starter
- Components not mentioned in these warranty conditions , which obviously wear out during operation, transportation and storage (such as coating painting).
13. Warranty repair does not include installation, adjustment and maintenance activities.
14. Damage such as engine seizure, bent or cracked crankshaft, broken magnet wheel keyway or knife hub are not repairable warranty.
15. If the service center does not fulfill its obligations, the user is obliged to inform the guarantor of this fact. Refusal to comply repair by the service center must be entered in the warranty card. If the guarantor does not recognize the repair as a warranty repair, the cost of repair and transport is covered by the claimant.
16. Defective spare parts replaced under warranty repair are the property of the guarantor.
17. Complaint should be reported to the nearest authorized service center or directly to the guarantor. Reporting a complaint at the point of sale may cause an increase in repair time.
18. During the reception of the device after warranty repair, it is his duty to make sure that the received device is complete and undamaged. The repair point has the obligation to start the device before handing it over to the user after repair.
19. The service point has the right to charge a fee for performing maintenance activities that are the responsibility of the user and require them to be performed before the proceeding with the repair. The repair shop is obliged to replace, at the user's expense, all components that ensure the safety of the work, which have been damaged damage during operation regardless of the consent of the user.
20. A continuously updated list of service points can be found at www.victus.en
21. The warranty for the goods sold does not exclude, limit or suspend the buyer's rights under the warranty provisions for defects in the goods sold.
22. The cost of an unjustified complaint is paid by the complainant.
23. This warranty is valid in the territory of the Republic of Poland.
24. Any damage caused during transport should be immediately reported to the carrier under penalty of voiding the warranty.
25. The warranty does not cover possible damages caused directly or indirectly to persons or things due to defects in the device or resulting from prolonged downtime in the operation of the device.
