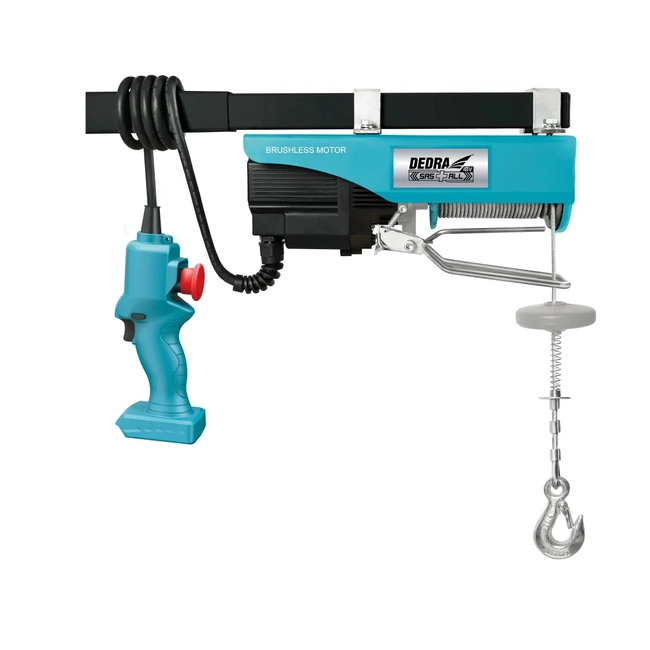

BATTERY WINCH WITH 18V BRUSHLESS MOTOR, DEDRA DED7111
- Lifting capacity: 125 / 250 kgLift speed: 1.75 / 3.5 m/minLift height. lifting: 12 m / 6 mRope length: 12 m
18V cordless winch, DEDRA SAS+ALL DED7111:
The battery-powered winch is capable of lifting loads both vertically and pulling them, making it highly versatile and suitable for a variety of applications.
It can be used to lift heavy structural components such as beams, steel bars, bricks or insulation materials. In addition, it makes it possible to move tools and work equipment quickly and efficiently, reducing the time spent on manual handling of materials. Thanks to its high lifting capacity, it can transport materials of greater weight and volume, and the absence of a power cord allows it to move easily in spaces that are difficult to access for other equipment.
The winch braking system consists of two mechanisms:
- Electronic brake - is responsible for precise stopping of the retracted load, allowing smooth and accurate control of its movement
- Mechanical brake - further protects against accidental release of tension, providing full control over the lifting or pulling process
This dual protection ensures that the winch operates reliably, even in difficult operating conditions, and the risk of uncontrolled load fall is minimal.
In addition, the brushless motor provides higher efficiency, longer device life and lower power consumption, resulting in longer run time per charge.
Features of battery winch with brushless motor DED7111:
- Brushless motor - provides higher efficiency, longer life and lower power consumption
- Vertical lifting or pulling - allows versatile use in a variety of working conditions
- Double brake protection - provides additional safety, minimizes the risk of uncontrolled load descent
- Electronic brake - precisely stops the load, allowing the retracted material to stop smoothly and safely
- Mechanical brake - acts as an additional layer of protection, preventing accidental release of tension
- High mobility - the absence of a power cord allows free movement with the winch
Technical data of the battery winch with brushless motor DED7111:
- Voltage: 18V
- Capacity:
- with block: 125 kg
- without pulley: 250 kg
- Speed:
- lifting:
- with block: 1.75 m/min
- without pulley: 3.5 m/min
- lowering:
- with block: 2.25 m/min
- without pulley: 4.5 m/min
- Lifting height:
- with block: 12 m
- without block: 6 m
- Length: 12 m
- Diameter: 3.18 mm
- Min. strength: 1870 N/mm²
- 2Ah - DED7032: 10 min (pulling construction materials to a height of 10 m)
- 4Ah - DED7034: 20 min (pulling building materials to a height of 10 m)
- 5Ah - DED7035: 25 min (pulling building materials to a height of 10 m)
- 6Ah - DED6936: 30 min (pulling construction materials to a height of 10 m)
- 8Ah - DED6937: 40 min (pulling building materials to a height of 10 m)
Completion:
- Battery-powered winch [1 pc]
- Block [1 pc]
- Mounting bracket [2 pcs]
- Hook holder [1 pc]
- Handle screws [6 pcs]
Product does not include battery and charger.
When purchasing, don't forget the charger and battery pack.
Technical specifications:
Brand: DEDRA SAS+ALL
Symbol: DED7111
Manufacturer code: 5902628711106
Warranty: Warranty 3 years
Maximum load capacity [kg]: 250
Lifting speed [m/min]: 3,5
Series: DEDRA SAS+ALL
Lifting speed with the block [m/min]: 1,75
Type: Battery winch
Engine type: Brushless
Voltage [V]: 18
Charger included: No
Rechargeable battery included: No
Power supply: Rechargeable
Maximum lift height [m]: 6
Maximum lifting height with block [m]: 12
