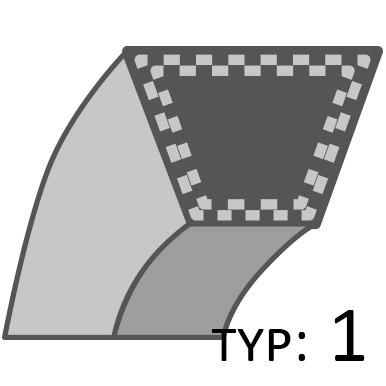

- MTD blade drive belt /12.7x2513/ RO9120
MTD belt blade drive /12.7x2513/
Width (mm) 12.7 Outer length La (mm) 2513
Inner length Li (mm) 2450 Pitch length Ld (mm) 2495
catalog number
CUB CADET: 754-0440, 954-0440,
MTD: 754-0440, 954-0440,
models
mowing apparatus H (46" / 117 cm)
MTD
13AG688H300 (2004) Lawn Tractor
13AG688H722 (2004) Lawn Tractor
133P679H382 (1993) Lawn Tractor
136G679H023 (1996) Lawn Tractor
135-600-000 (1995) Lawn Tractor
135G679H000 (1995) Lawn Tractor
135O695H352 (1995) Lawn Tractor
135P668H000 (1995) Lawn Tractor
135P670H000 (1995) Lawn Tractor
135P679H000 (1995) Lawn Tractor
136O675H302 (1996) Lawn Tractor
136O695H352 (1628279) (1996) Lawn Tractor
136P695H352 (1670860) (1996) Lawn Tractor
136Q695H352 (1996) Lawn Tractor
134P679H033 (1994) Lawn Tractor
135O679H033 (1995) Lawn Tractor
13A6698H033 (1998) Lawn Tractor
133P660H000 (1993) Lawn Tractor
133P670H087 (1993) Lawn Tractor
133P679H000 (1993) Lawn Tractor
133P678H000 (1993) Lawn Tractor
133Q668H702 (1250695) (1993) Lawn Tractor
133Q678H736 (4803110) (1993) Lawn Tractor
134O695H352 (1994) Lawn Tractor
134O699H352 (1994) Lawn Tractor
134P668H000 (1994) Lawn Tractor
134P668H134 (1994) Lawn Tractor
134P670H000 (1994) Lawn Tractor
134P679H000 (1994) Lawn Tractor
134P670H147 (1994) Lawn Tractor
134P679H023 (1994) Lawn Tractor
134P698H302 (1994) Lawn Tractor
135P668H129 (1995) Lawn Tractor
135P668H134 (1995) Lawn Tractor
135P670H147 (1995) Lawn Tractor
13AG688H304 (2004) Lawn Tractor
13AG688H372 (2004) Lawn Tractor
13AG688H401 (2004) Lawn Tractor
13AG688H720 (2004) Lawn Tractor
13AG688H730 (2004) Lawn Tractor
13AG688H301 (2004) Lawn Tractor
13AG688H709 (2004) Lawn Tractor
13AG688H371 (2004) Lawn Tractor
13AG688H307 (2004) Lawn Tractor
13AG688H513 (2004) Lawn Tractor
13AG688H713 (2004) Lawn Tractor
13AG688H382 (2004) Lawn Tractor
13AG688H000 (2004) Lawn Tractor
13AG688H121 (2004) Lawn Tractor
13AG688H205 (2004) Lawn Tractor
13AG688H705 (2004) Lawn Tractor
13AG688H706 (2004) Lawn Tractor
13AG688H026 (2004) Lawn Tractor
13AG688H726 (2004) Lawn Tractor
13AG688H054 (2004) Lawn Tractor
13AG688H745 (2004) Lawn Tractor
13AG688H754 (2004) Lawn Tractor
13AG688H704 (2004) Lawn Tractor
13AG688H029 (2004) Lawn Tractor
13AG688H229 (2004) Lawn Tractor
13AG688H134 (2004) Lawn Tractor
13AG688H138 (2004) Lawn Tractor
13AG688H729 (2004) Lawn Tractor
13AG688H929 (2004) Lawn Tractor
13AG688H129 (2004) Lawn Tractor
13AG688H151 (2004) Lawn Tractor
13AG688H206 (2004) Lawn Tractor
13AG688H308 (2004) Lawn Tractor
13AG688H033 (2004) Lawn Tractor
13AG688H019 (2004) Lawn Tractor
13AG688H057 (2004) Lawn Tractor
13AG688H118 (2004) Lawn Tractor
13AG688H131 (2004) Lawn Tractor
13AG688H022 (2004) Lawn Tractor
13AG688H002 (2004) Lawn Tractor
13AG688H715 (2004) Lawn Tractor
13AG688H077 (2004) Lawn Tractor
13AG688H977 (2004) Lawn Tractor
13AG688H777 (2004) Lawn Tractor
13AG688H724 (2004) Lawn Tractor
13AG688H105 (2004) Lawn Tractor
13AG688H009 (2004) Lawn Tractor
13AG688H016 (2004) Lawn Tractor
13AG688H145 (2004) Lawn Tractor
13AG688H196 (2004) Lawn Tractor
13AG688H719 (2004) Lawn Tractor
13AG688H098 (2004) Lawn Tractor
135G679H304 (1995) Lawn Tractor
135G679H372 (1995) Lawn Tractor
135G679H401 (1995) Lawn Tractor
135G679H720 (1995) Lawn Tractor
135G679H730 (1995) Lawn Tractor
135G679H301 (1995) Lawn Tractor
135G679H709 (1995) Lawn Tractor
135G679H371 (1995) Lawn Tractor
135G679H307 (1995) Lawn Tractor
135G679H513 (1995) Lawn Tractor
135G679H713 (1995) Lawn Tractor
135G679H382 (1995) Lawn Tractor
135G679H121 (1995) Lawn Tractor
135G679H205 (1995) Lawn Tractor
135G679H705 (1995) Lawn Tractor
135G679H706 (1995) Lawn Tractor
135G679H026 (1995) Lawn Tractor
135G679H726 (1995) Lawn Tractor
135G679H054 (1995) Lawn Tractor
135G679H745 (1995) Lawn Tractor
135G679H754 (1995) Lawn Tractor
135G679H704 (1995) Lawn Tractor
135G679H029 (1995) Lawn Tractor
135G679H229 (1995) Lawn Tractor
135G679H134 (1995) Lawn Tractor
135G679H138 (1995) Lawn Tractor
135G679H729 (1995) Lawn Tractor
135G679H929 (1995) Lawn Tractor
135G679H129 (1995) Lawn Tractor
135G679H151 (1995) Lawn Tractor
135G679H206 (1995) Lawn Tractor
135G679H308 (1995) Lawn Tractor
135G679H033 (1995) Lawn Tractor
135G679H019 (1995) Lawn Tractor
135G679H057 (1995) Lawn Tractor
135G679H118 (1995) Lawn Tractor
135G679H131 (1995) Lawn Tractor
135G679H022 (1995) Lawn Tractor
135G679H722 (1995) Lawn Tractor
135G679H002 (1995) Lawn Tractor
135G679H715 (1995) Lawn Tractor
135G679H077 (1995) Lawn Tractor
135G679H977 (1995) Lawn Tractor
135G679H777 (1995) Lawn Tractor
135G679H724 (1995) Lawn Tractor
135G679H105 (1995) Lawn Tractor
135G679H009 (1995) Lawn Tractor
135G679H016 (1995) Lawn Tractor
135G679H145 (1995) Lawn Tractor
135G679H196 (1995) Lawn Tractor
135G679H719 (1995) Lawn Tractor
135G679H098 (1995) Lawn Tractor
133P679H304 (1993) Lawn Tractor
133P679H372 (1993) Lawn Tractor
133P679H401 (1993) Lawn Tractor
133P679H720 (1993) Lawn Tractor
133P679H730 (1993) Lawn Tractor
Bolens
13AG683H163 (2003) Lawn Tractor
Yard Man
1363694H401 (1996) Lawn Tractor
1363694H701 (1996) Lawn Tractor
13AU694H401 (1998) Lawn Tractor
135V694H401 (1995) Lawn Tractor
13AJ694H401 (1997) Lawn Tractor
