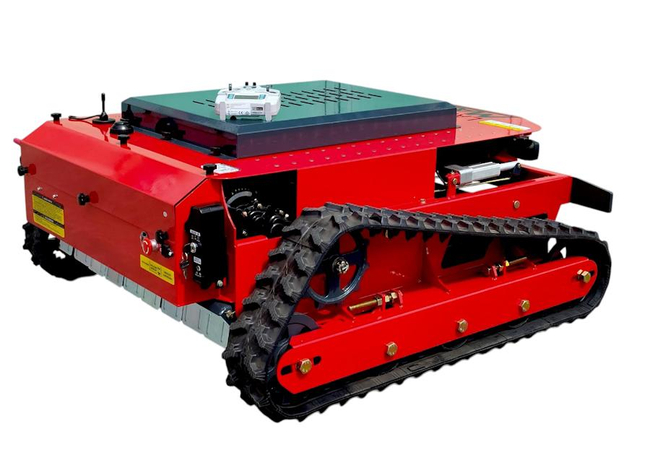

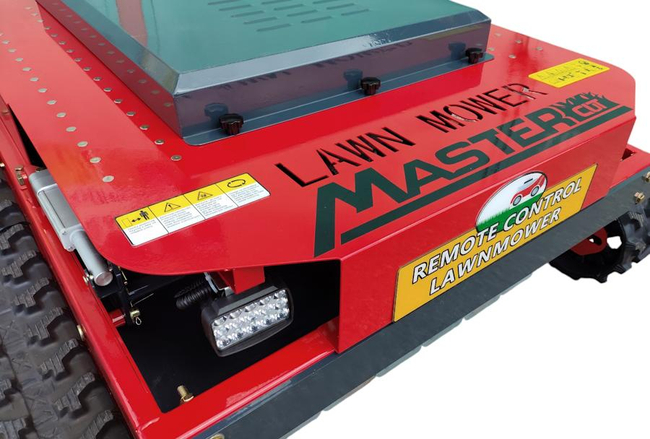

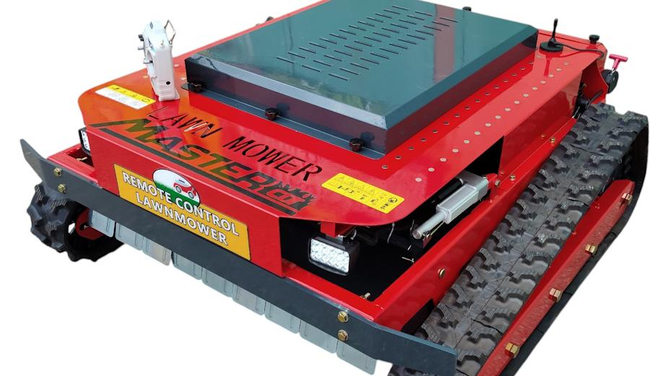

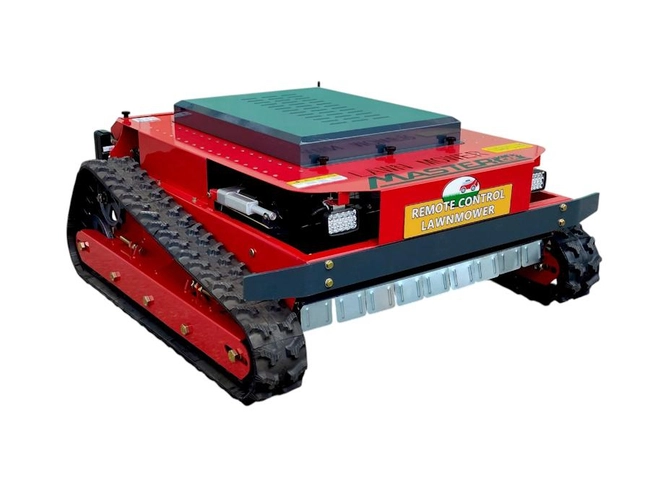

Mastercut diesel-electric mower for special tasks.

The Mastercut JFRC 90CM mower is an innovative gardening tool that combines the power of an internal combustion engine with an electric drive for superior mowing performance and efficiency. With a working width of 90 cm, the mower is ideal for large areas, which significantly speeds up lawn mowing. In addition, the remote control function allows you to conveniently steer the machine without direct contact with the mower, which increases comfort and allows precise maneuvering, even in hard-to-reach areas. The mower is equipped with an adjustable cutting height, which allows you to adjust it to your individual needs. Thanks to its robust design, it is a long-lasting tool for use in demanding conditions.

Specification:

General:

• Hybrid drive
• Blade drive - diesel
• Takcji drive - electric
• Mowing width 90cm

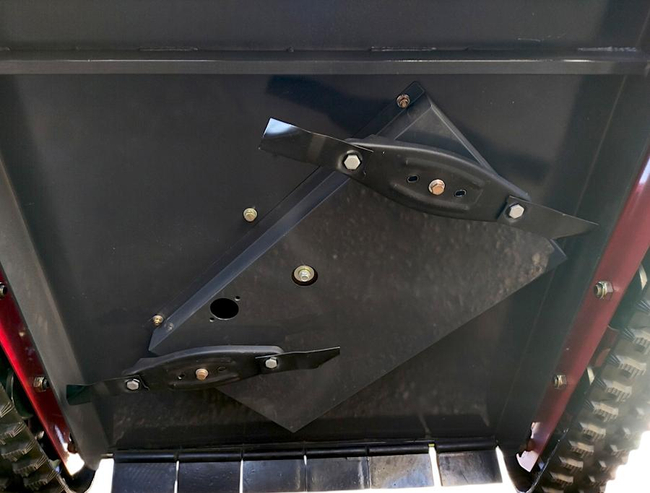

• Two cutting bars with tilting knives
• Mowing height adjustment electric central 50-110mm

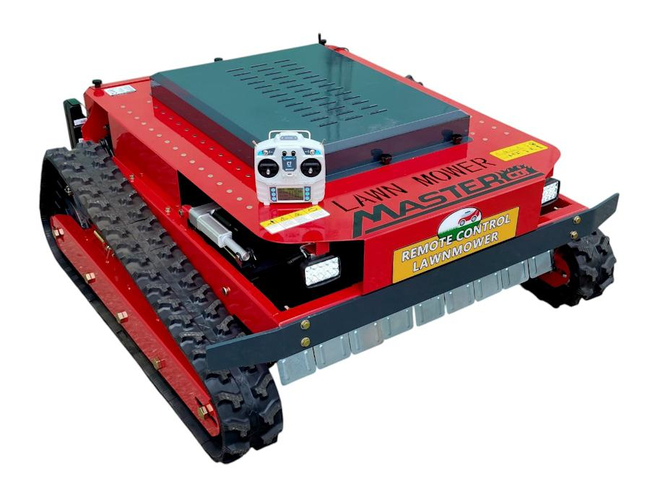

• Control by remote control
• Range to remote control up to 100m
• Maximum tilt of mower operation 30^o
• Zero turning radius

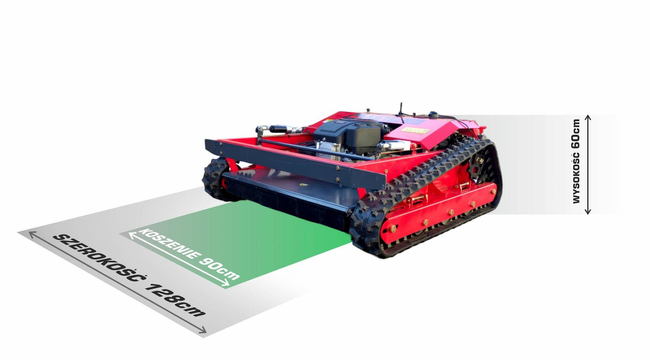

• Sizes 108*125*40cm
• Net weight 260kg

Cutting system drive:

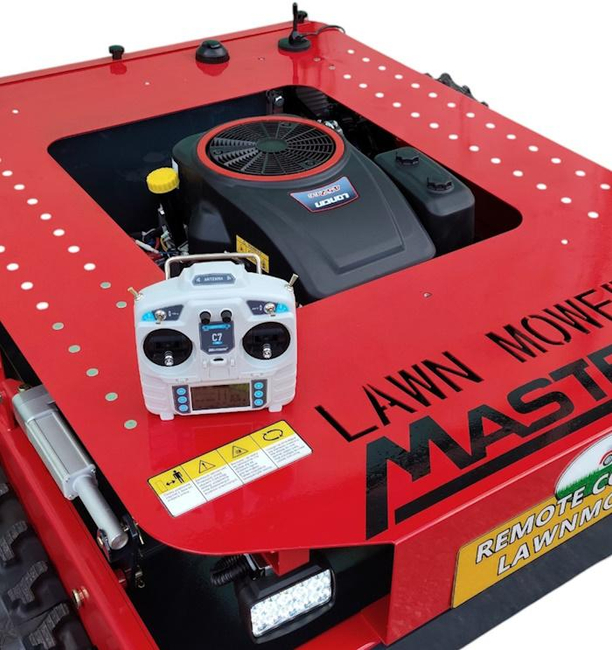

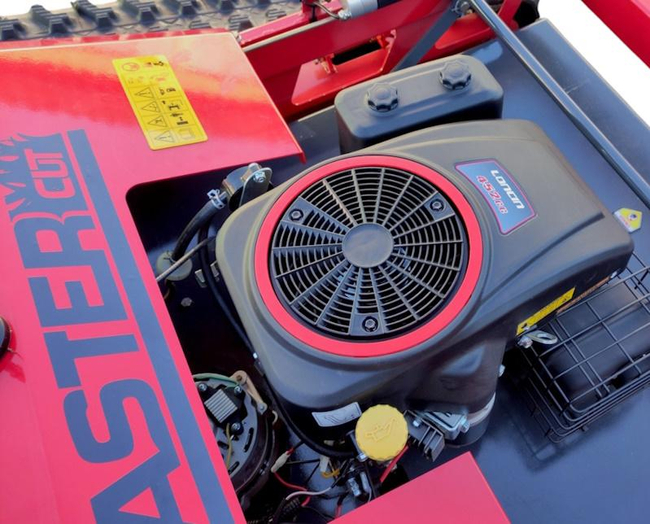

• Loncin LC1P92F, single-cylinder gasoline air-cooled, OHV
• Engine capacity 452cm³
• Maximum power 15HP
• Oil pump
• Electric starter
• Vertical shaft
• Cast iron cylinder liner

Drive train

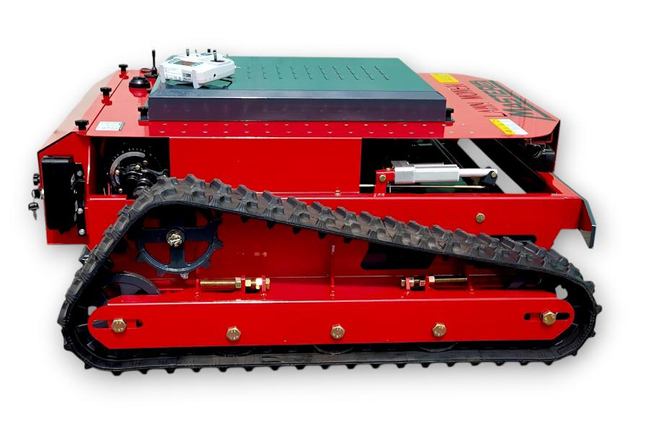

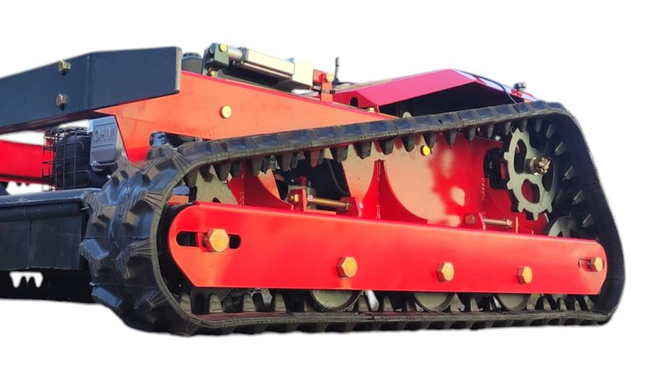

• Traction on rubber tracks

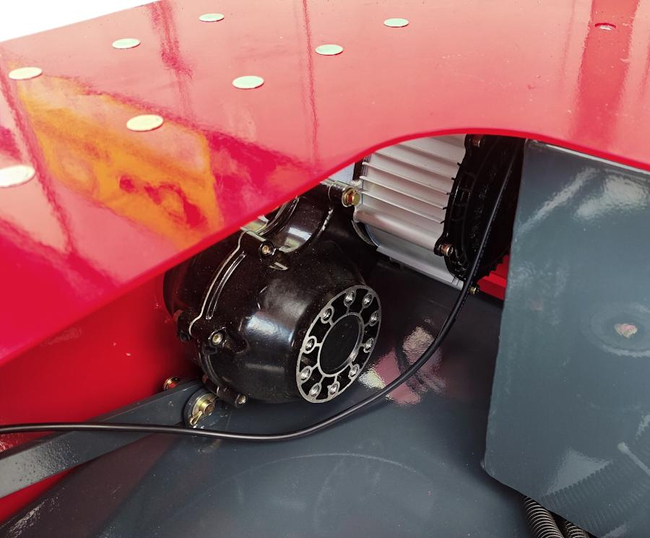

• 550W brushless electric motor x 2pcs
• Power supply for electric motors - 24V battery
• Battery generator driven by internal combustion engine
• Driving time without running combustion engine about 10min
• Running operation with the combustion engine running - continuous.

Technical specifications:
