GREENMAN AE500 500MM 80MM LONCIN G200F tubular combustion aerator
- SPRINAL PIPE AERATOR AE500 500MM 80MM LONCIN G200F specifications: engine: Loncin G200Fengine capacity: 196 cm3power: 4.1kW (5.5hp) / 3600rpmWorking width: 500mmworking depth: 80mm maximumTransmission: Basic drive behind&n

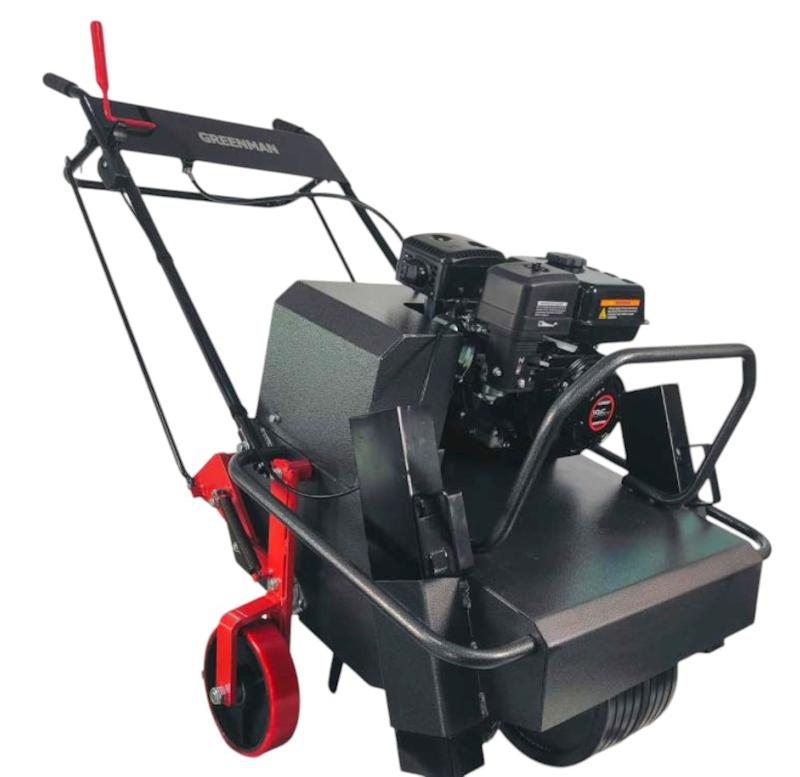

GREENMAN AE500 500MM 80MM LONCIN G200F tubular combustion aerator - professional lawn aeration for demanding customers
The GREENMAN AE500 is a professional tube aerator with a Loncin G200F engine (196 cm³, 4.1 kW/5.5 hp) that removes soil cores from the turf and creates hundreds of precise holes per sq. m. With a working width of 500 mm, a depth of up to 80 mm, and a belt-and-chain drive, the device ensures quick and sustained soil aeration, better water and fertilizer absorption, and stronger grass rooting. It is a proven choice for home gardens, estates, sports fields and golf courses.
- Maximum efficiency: up to 2420 m²/h at an operating speed of approx. 4.75 km/h.
- Deep and effective aeration: 30 Ø20 mm steel tubes, up to 76 holes per 1 m², depth up to 80 mm.
- Stability and secure pressure: two removable weights of 21 kg each, dead weight of 180 kg.
GREENMAN AE500 500MM 80MM LONCIN G200F tubular combustion aerator - power, performance and reliable design
1) Loncin G200F 196 cm³ engine - high torque (3600 rpm./min) guarantees smooth operation even on heavy, clay soils. In practice, you reduce the number of passes and save fuel and time.
2) Working width of 500 mm and efficiency of up to 2420 m²/h - ideal for large areas: football field, estate grounds, park or extensive garden. With one pass you cover a large strip of turf, maintaining an even working depth.

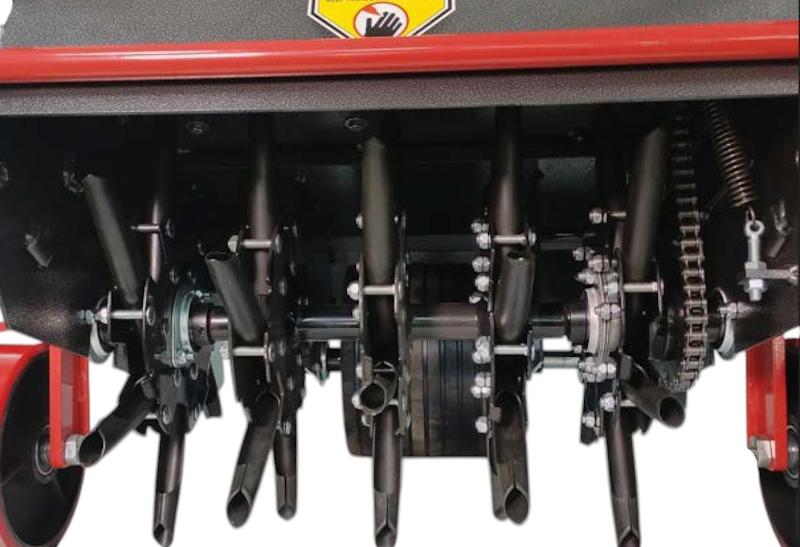

3) Belt and chain drive + weights - Belt carries base drive, chain takes care of reliable operation of working unit. Additional weights (2×21 kg) increase soil penetration and stability on uneven ground.
Application examples: spring lawn renovation after winter, pre-season field preparation, aeration of grass before reseeding and sanding.
Effects of long-term tubular aeration - where to use and how to realize the potential of the AE500
1) 30 Ø20 mm tubes - up to 76 holes per m² - Removal of soil cores prevents soil compaction. The holes improve gas exchange and penetration of water and fertilizers, which accelerates turf regeneration and compaction.
2) Depth up to 80 mm - real oxygenation of the root zone. Lawn better withstands drought, heavy use and disease. Excellent base for reseeding and maintenance treatments (sanding, fertilizing).
3) Mobility and work rate - ok. 4.75 km/h - trouble-free guidance on straights and curves, convenient maneuvering between plantings and landscaping elements.
Examples of applications: renovation of school playground turf, care of hotel lawns, cyclic aeration of residential green spaces, preparation of turf for sprinklers and irrigation systems.
What is the GREENMAN AE500 500MM 80MM LONCIN G200F tubular combustion aerator?
This self-propelled lawn core aeration device. A team of 30 hollow tubes cuts and selects narrow cores of soil from the turf, leaving regular holes. This loosens the soil, the roots are better oxygenated, and water and fertilizers reach the root zone faster.
Where to install / how to use?
AE500 does not need to be mounted to a tractor or vehicle - it is a complete machine driven by the operator. The device is used directly on the lawn: garden, recreational, sports, hotel or park lawn. Deck-mounted weights increase ground pressure for deeper aeration.
Application
- Sports fields, golf courses, recreational and settlement areas.
- Large home gardens, hotel lawns and corporate campuses.
- Preparation for reseeding, sanding, intensive fertilization and irrigation.
Key benefits for your lawn
- Faster recovery and natural thickening of turf after a season or drought.
- Sustained improvement in soil structure compared to spike aeration.
- Better absorption of water and nutrients, less runoff.
Technical data (abbreviated)
- Engine: Loncin G200F, 196 cm³, 4.1 kW (5.5 hp) at 3600 rpm./min
- Working width: 500 mm; Depth: up to 80 mm
- Transmission: primary belt drive, secondary chain drive
- Working unit: 30 Ø20 mm tubes; up to 76 holes/m²
- Speed: approx. 4.75 km/h; Efficiency: up to 2420 m²/h
- Weights: 2×21 kg (removable); Net weight: 180 kg; Gross weight: 200 kg
- Dimensions: 1470 × 830 × 1180 mm; Packaging: 880 × 880 × 960 mm
- EAN code: 5900652076246; Commodity code: AE500; ID: 69236
GREENMAN AE500 500MM 80MM LONCIN G200F tubular combustion aerator
specifications:
- engine: Loncin G200F
- engine capacity: 196 cm3
- power: 4.1kW (5.5HP) / 3600 rpm
- working width: 500mm
- working depth: 80mm maximum
- Transmission: primary drive by belt / secondary drive by chain
- working tube: Ø 20mm, 30 pieces
- number of holes per m2 : 76 holes
- forward speed: 4.75 km/h
- efficiency: 2420 m2/h
- removable weights: 2 pcs each 21kg
- net weight: 180kg
- gross weight: 200 kg
- overall size: 1470x830x1180mm
- package: 880x880x960mm
Advantages of a tubular aerator:
- Better soil permeability - Removes soil cores, creating openings that facilitate access of air, water and nutrients to grass roots.
- Preventing soil compaction - Unlike spike aerators, it does not further compact the soil, but effectively loosens it.
- Improving irrigation and fertilization - The holes left by the tubes help absorb water and fertilizer more efficiently, which speeds up grass growth.
- Better root system - Regular tubular aeration stimulates the grass to root more deeply, increasing its resistance to drought and disease.
- A healthier and denser lawn - With improved gas exchange and nutrient availability, grass regenerates and thickens faster.
- Ideal for professional use - Used on sports fields, golf courses and large lawns where long-term soil improvement is important.
- The effects last longer - Unlike spike aeration, which produces short-term results, tubular aeration improves soil structure for many months.
- Effectiveness on different soil types - Particularly recommended for heavy and clay soils that tend to compact quickly.
Technical specifications:
EAN code: 5900652076246
Commodity code: AE500
ID: 69236
Height: 0 cm
Length: 0 cm
Width: 0 cm
Specification - detailed table
| Engine | Loncin G200F, 196 cm³, 4.1 kW (5.5 hp) / 3600 rpm./min |
| Working width / depth | 500 mm / up to 80 mm |
| Work team | 30 Ø20 mm tubes, approx. 76 holes per 1 m² |
| Drive | belt (primary) + chain (secondary) |
| Speed / performance | about. 4.75 km/h / up to 2420 m²/h |
| Weights | 2 × 21 kg (removable) |
| Weight | 180 kg (net), 200 kg (gross) |
| Dimensions / Packaging | 1470 × 830 × 1180 mm / 880 × 880 × 960 mm |
| EAN / Commodity Code / Id | 5900652076246 / AE500 / 69236 |
Product codes
- Product EAN codes: 5900652076246
- External system code: AE500
FAQ - the most common questions
1. How core aeration differs from spike aeration?
Tubular working unit selects soil cores, realistically loosening the soil. Spikes only pierce the turf and can further compact the soil around the holes.
2. How often to perform AE500 aeration?
Mostly 1-2 times a year: in spring and/or autumn. On heavily used sports turf - even more often, according to the greenkeeping plan.
3. Is the device suitable for clayey, heavy soils?
Yes. High dead weight, additional weights and Ø20 mm tubes allow to effectively penetrate and loosen clayey soils.
4. How to prepare a lawn for aeration?
Mow the grass, remove lingering leaves and twigs, water the soil the day before (it should be moist, not soggy). After treatment, sanding and fertilizing is recommended.
5. Does the AE500 require special installation?
Not. It's a complete machine run by an operator. All you need to do is check the oil level, fuel and you're good to go.
6. What are the effects after the treatment?
Better water absorption, faster fertilizer penetration, turf regeneration and thickening, deeper root system and more resilient lawn.
