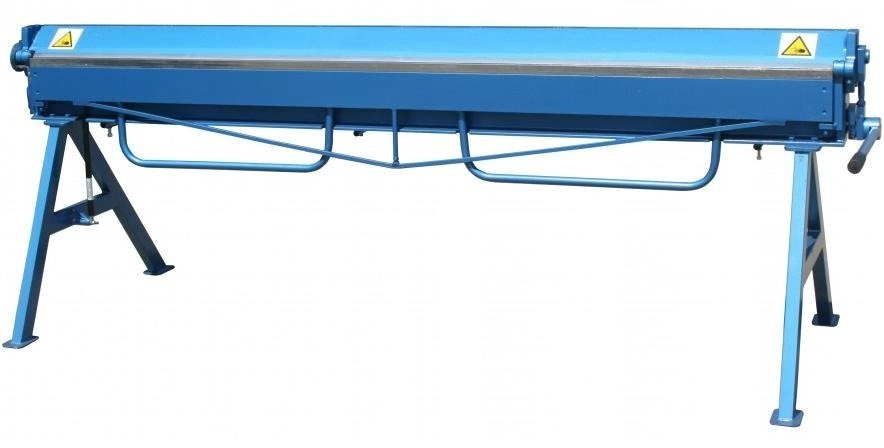

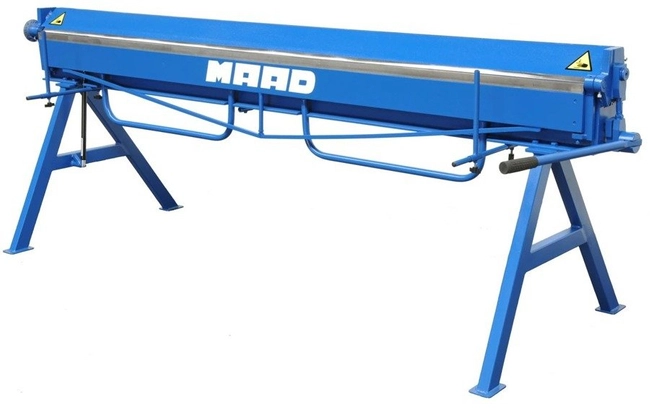

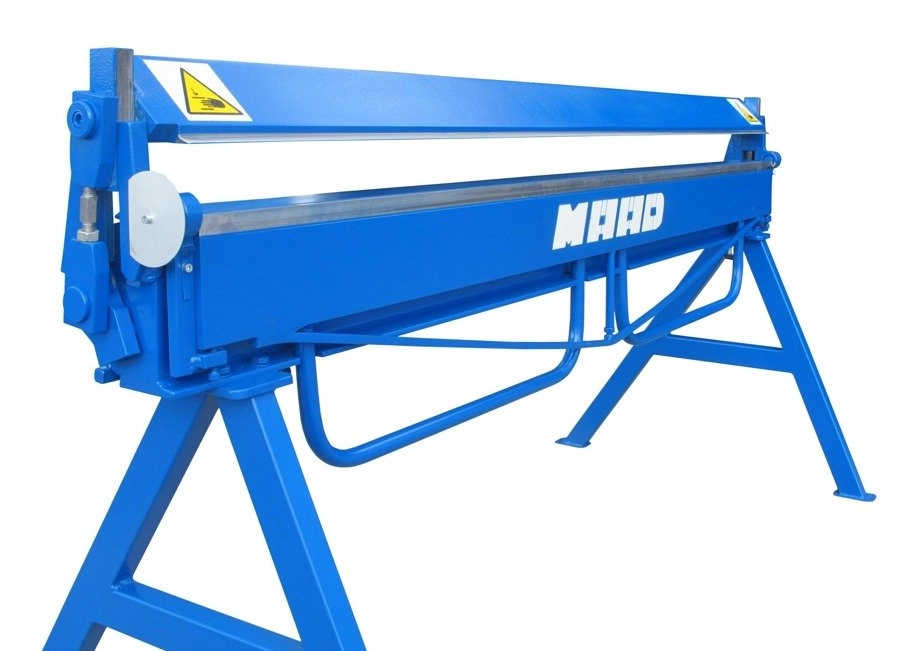

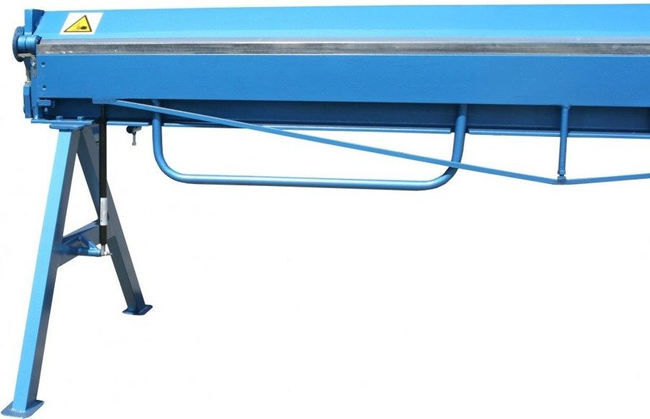

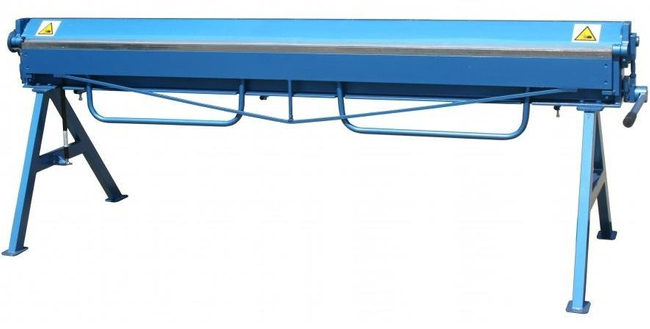

SHEET METAL BENDING MACHINE MAAD ZG-2500/0.7

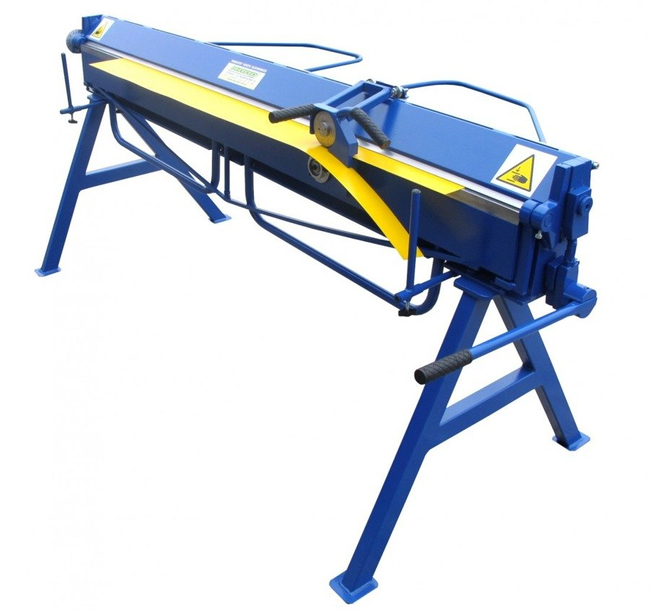

MAAD ZG-2500 series bending machines are equipped with two cylinders lifting the pressure bar and one cylinder lifting the bending bar. The ZG-2500/0.7 bending machine is produced mainly for roofers working on sheets up to 2500 mm long and 0.7 mm thick. Narrow bending beam, i.e. 20 mm, makes it possible to perform a huge number of roofing flashings on one stable machine. The use of brass bushings in the rotary mechanisms of the device significantly extends the life of the bending machine, the ability to work with a circular knife further adds functionality.
MAAD ZG-2500/0.7 is a model of bending machine produced for roofers who require a longer working length than typical machines. Functional and reliable in use, guarantees trouble-free operation without deformation of working parts. Narrow bending beam makes it possible to perform complex flashings. Especially useful for bending window sills.
Technical parameters/equipment:
- - working width - 2640 mm
- - max. thickness of the bent sheet - 0.7 mm ( for Rm<400MPa )
- - clearance between beams - 85-100 mm
- - width of the bending beam - 20 mm
- - maximum bending angle - 135 degrees
- - detachable legs - makes transportation and loading much easier

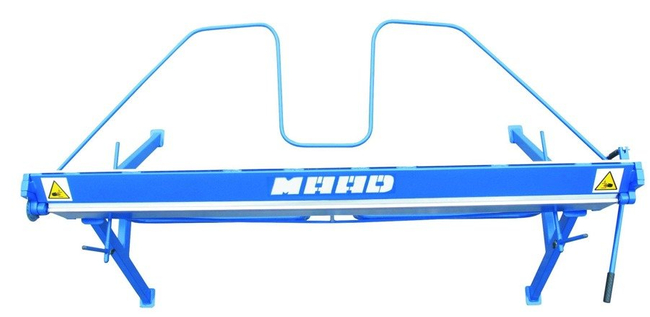

- - overlapping rack attached to the back of the machine to support the sheet metal
- - gauges for cutting sheet metal

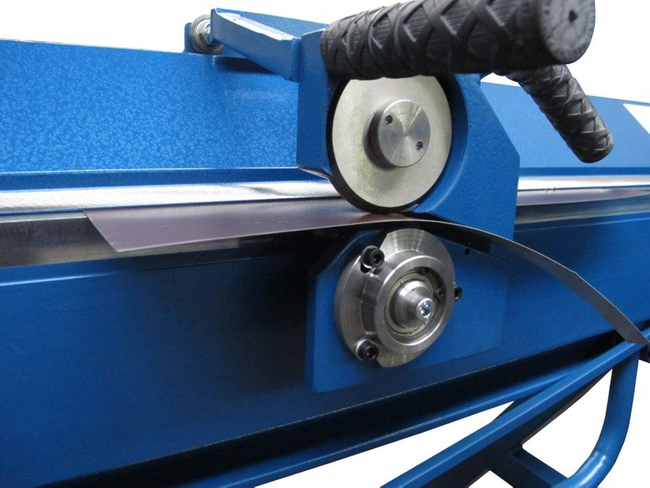

- - roller shears (optional)
- - protractor as standard equipment

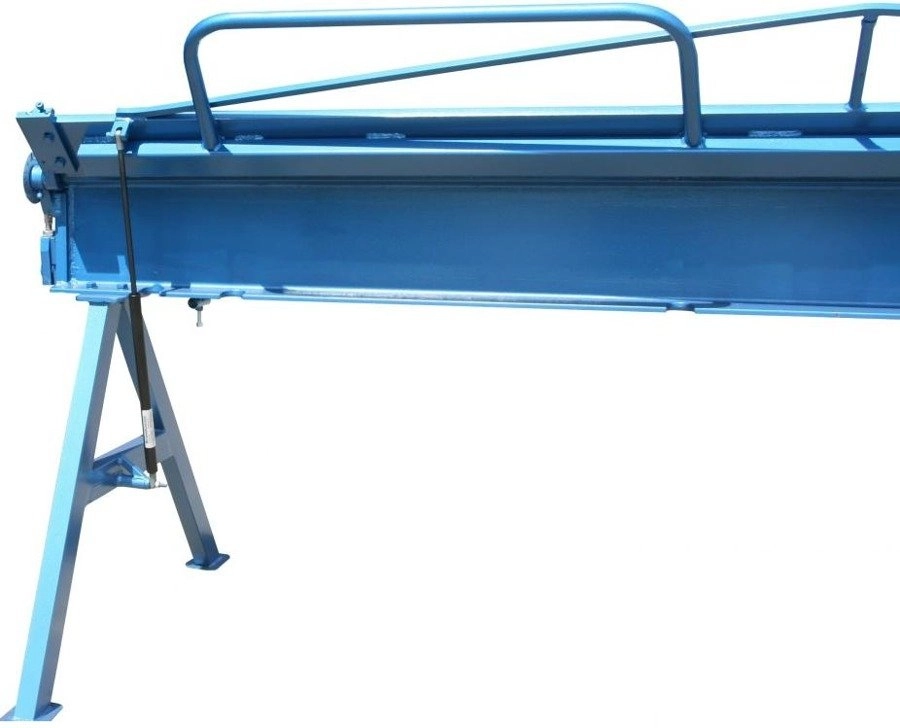

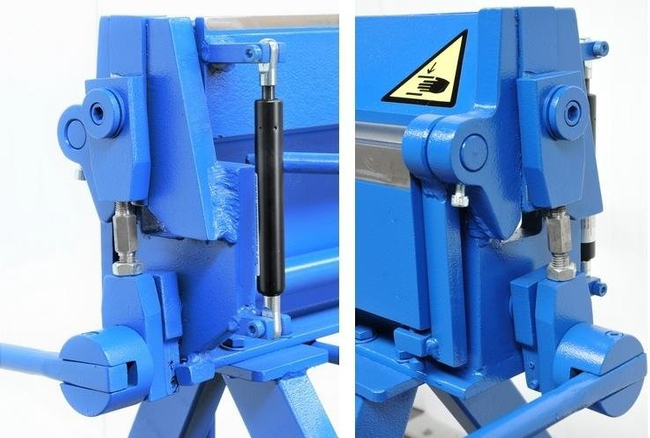

- - gas cylinder to assist in lifting the bending beam
- - gas cylinder to assist in lifting the pressure beam
Machine dimensions:
- height - 1,005 mm
- width - 2,850 mm
- depth - 930 mm

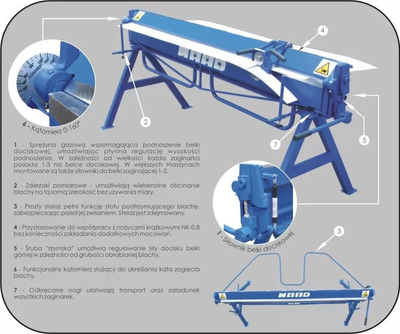

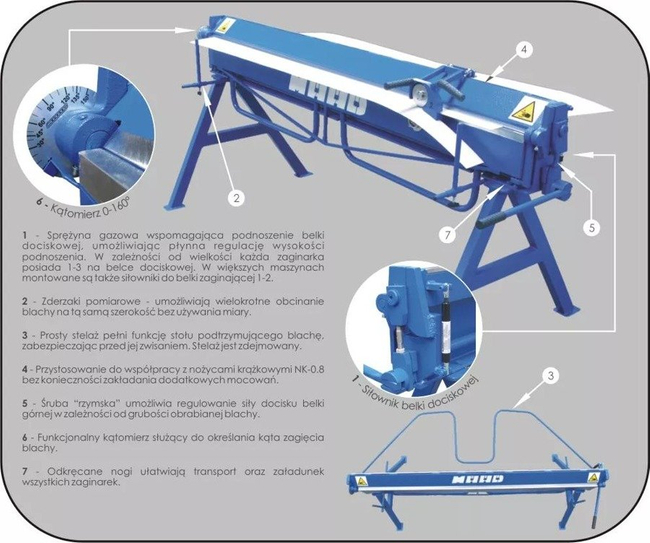

The main working elements of the bending machine are the beams: fixed, clamping and bending beams.

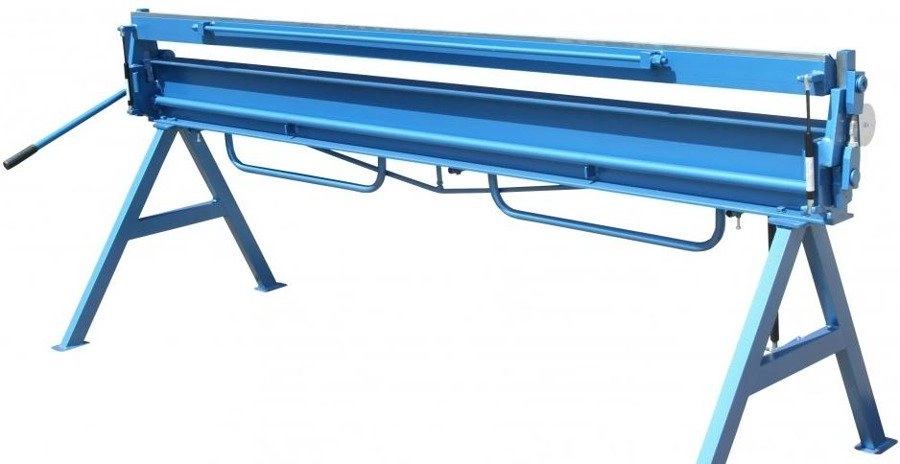

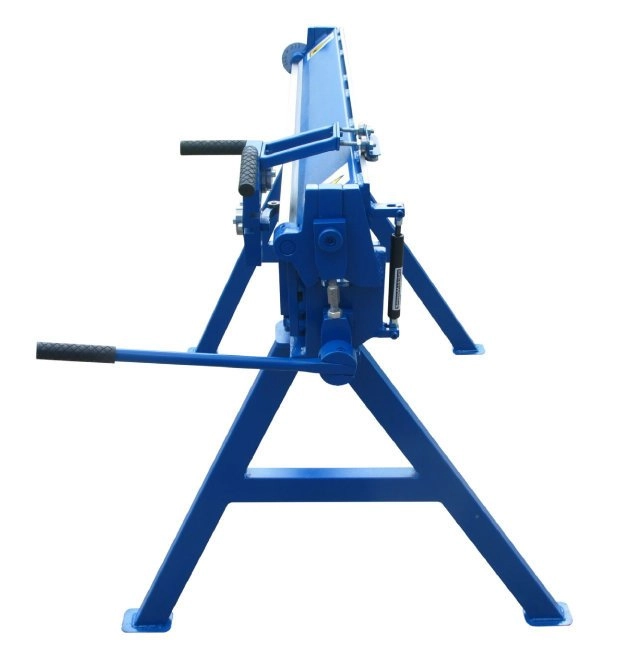

The pressure beam is a movable beam used to fix the sheet in the desired position. It is raised and lowered by a lever. Gas cylinder assists in raising the pressure beam. The pressure beam is designed so that its upper part is a guide for the roller shears.

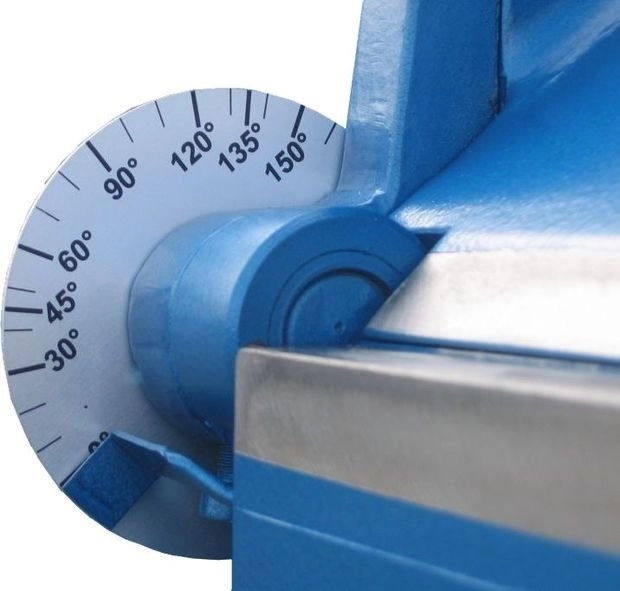

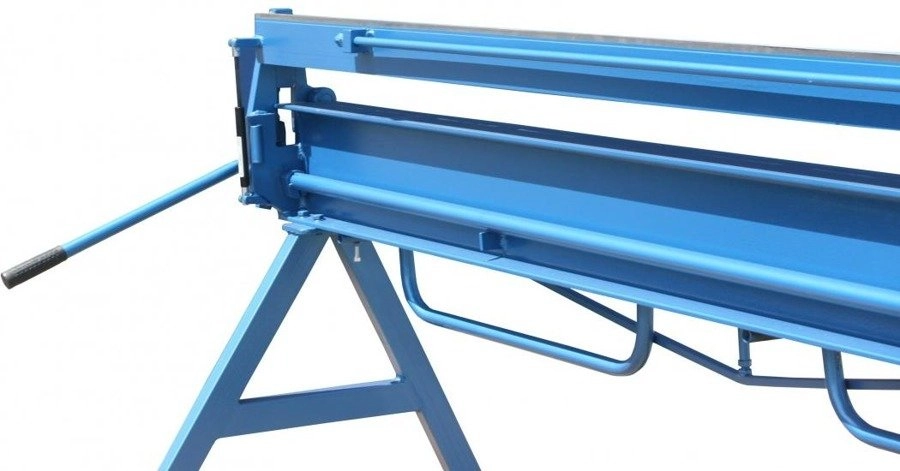

The bending operation is carried out by rotating the bending beam by a certain angular value using a handle. Gas cylinder assists in lifting the bending beam. Angle gauge mounted on the left side of the bending machine when viewed from the front indicates the current angle of the sheet metal bend.
The bending beam has an adjustable position in relation to the fixed beam. This parameter affects the bending radius of the sheet and its size also depends on the thickness of the sheet to be bent.
Working beams are equipped with turnbuckles for setting the straightness of the working edges.

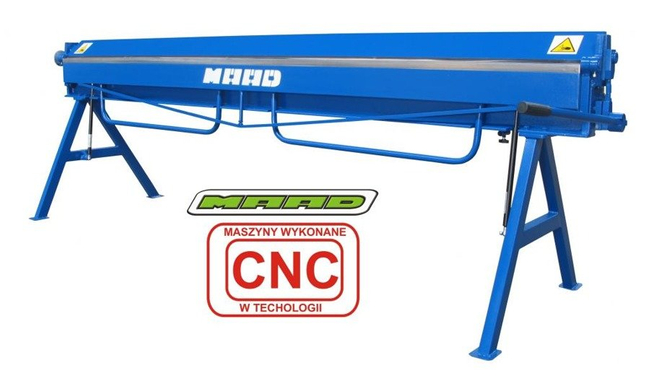

Bending machine components are made on precision CNC machine tools.
The bending machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.
