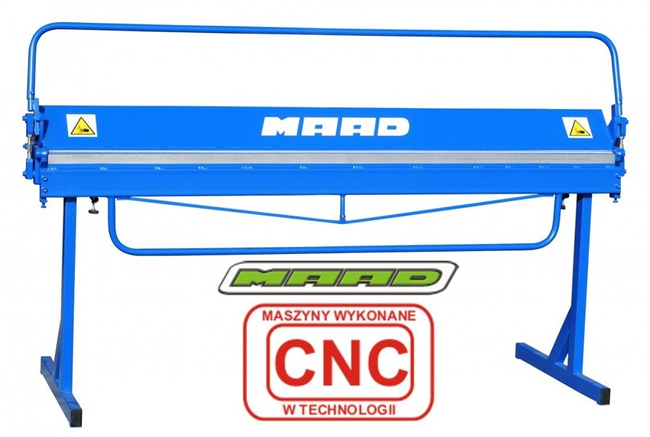

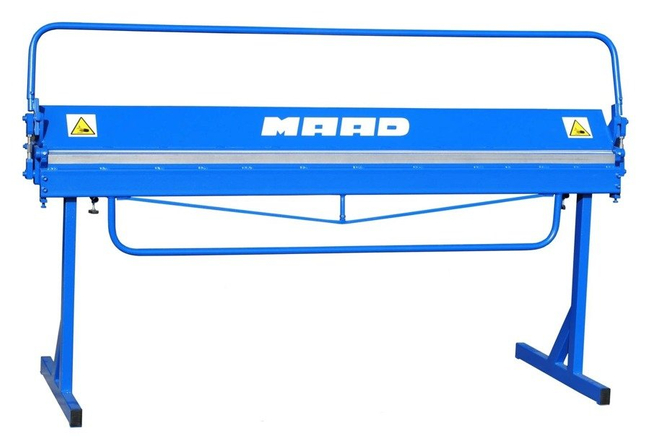

MAAD ZGL-2000/0.7 LIGHTWEIGHT BENDER DECKING BENDER FOR SHEET SHEET LIGHTWEIGHT VERSION - PORTABLE MAAD ZGL-2000/0.7 mm
- Bending machine MAAD ZGL-2000/0.7- The new design of the machine allowed to obtain a very low weight of the device 149 kg while maintaining high working parameters. A specially milled drip on the pressure bar allows the sheet to be bent to an angle of 155
MAAD bending machines are used by such companies as BLACHOTRAPEZ, RUUKKI, FAKRO that is, companies closely related to the roofing industry!
Technical parameters/equipment:
- working width - 2100 mm
- max. thickness of the bent sheet - 0.7 mm ( for Rm<400MPa )
- width of the bending beam - 15 mm
- maximum bending angle - 155 degrees
- weight of the machine - 149 kg
- detachable legs - makes transportation and loading much easier

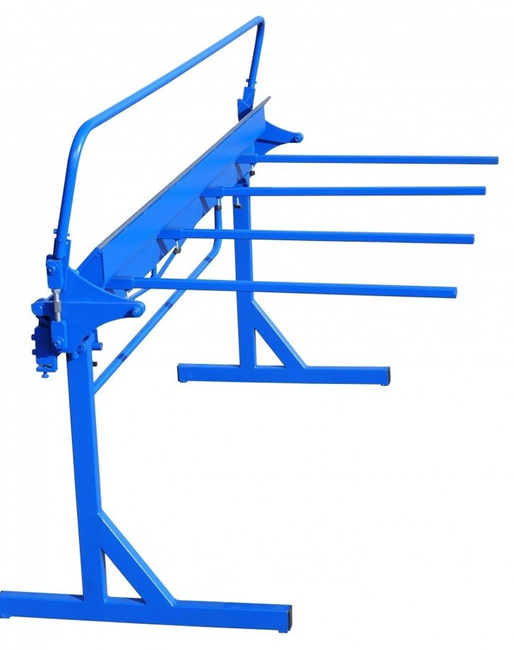

- overlapping rack attached to the back of the machine to support the sheet metal
- gauges for cutting sheet metal
- protractor that allows you to accurately determine the angle of the sheet metal bend

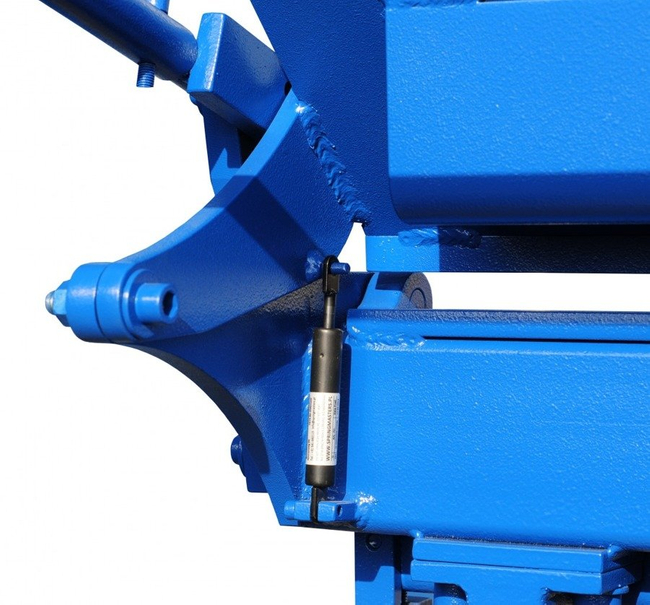

- gas cylinder to assist in lifting the bending beam
- Can be operated by one person!
Machine dimensions:
- height - 1,100 mm
- width - 2,320 mm
- depth - 800 mm

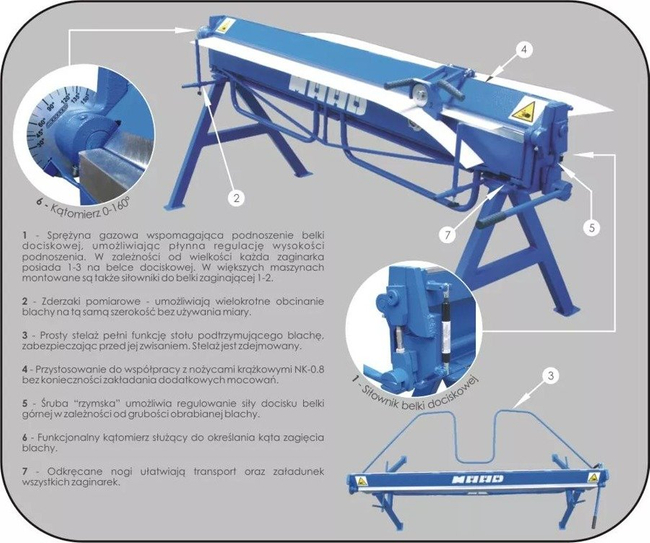

The main working elements of the bending machine are the beams: fixed, clamping and bending beams.

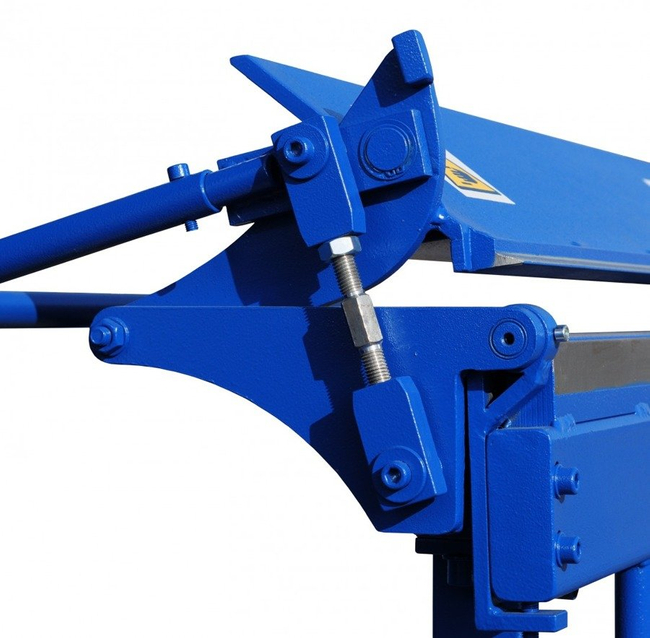

The pressure beam is a movable beam used to fix the sheet in the desired position. It is raised and lowered by a lever. Gas cylinder assists in raising the pressure beam. The pressure beam is designed so that its upper part is a guide for the roller shears.

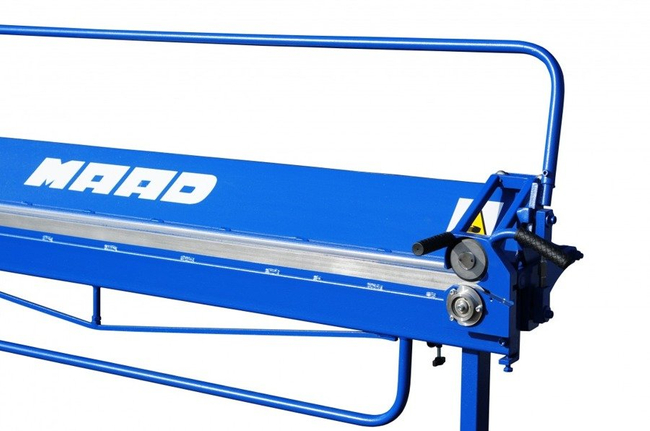

The bending operation is carried out by rotating the bending beam by a certain angular value using a handle. Angle gauge mounted on the left side of the bending machine when viewed from the front indicates the current angle of the sheet metal bend.

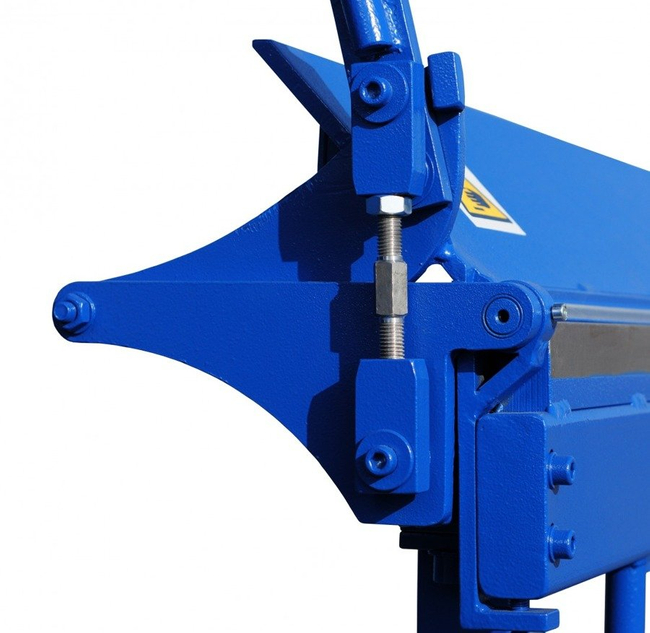

The bending beam is height adjustable relative to the fixed beam. This parameter affects the bending radius of the sheet and its size also depends on the thickness of the sheet to be bent.
Bending machine components are made on precision CNC machine tools.
The bending machine is covered with a double layer of high-quality paint - the painting process is performed in a professional, heated and ventilated paint shop.
